Showing values of bars and blocks

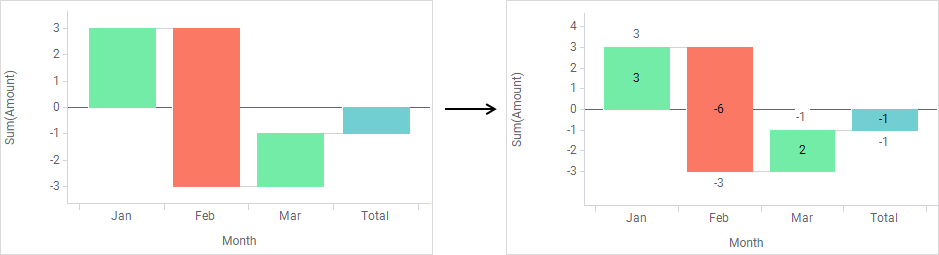

You can show the values of the bars and blocks in the waterfall chart.

About this task

The values of the actual blocks as well as the running totals can be displayed.

Procedure

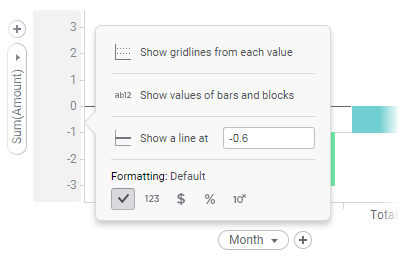

Place the cursor on the value axis.
The axis is highlighted.
Click the highlighted area to access a pop-up menu.
Select Show values of bars and blocks.

Note: If you want to remove the values from the bars and blocks, repeat the steps above.

Tip: It is possible to display either running total labels or block labels. Open the Properties popover, click Labels, and select Running totals or Blocks, respectively.
