Preferences
The following settings are specified by an administrator for groups of users. These settings specify what is to be exported when using the qualification tool, and what is to be displayed in the export report.
Note: If different settings are used for different groups, it is possible that each group will require a separate gold standard, as these settings affect the contents of the compared exports.

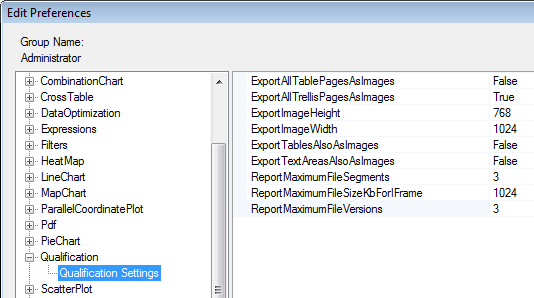

To Reach the Qualification Preferences:
As an Administrator, select Tools > Administration Manager.
Select the Preferences tab.
Select the group for which to specify the preferences.
Select Qualification > Qualification Settings in the list displayed for the selected group.
Click Edit.
Option |
Description |
ExportAllTable |
If tabular visualizations are exported as images, set this to true to export the entire visualization as multiple images. Note that this can create a large amount of images. The default value is false, which only exports the part of the visualization that is visible on the screen as an image. |
ExportAllTrellis |
Set this to true to export every page of a trellis as an image, and false to export only the visible parts of the trellis as an image. Note that enabling this feature can create a large amount of images. However, if there are several pages of a trellis and only the visible parts are exported, there will be parts of the analysis that are not qualified. The default value is true. |
ExportImageHeight |
Specify the height of the exported images, in pixels. The default value is 768. Note: Changing only one of the values for height or width will override the aspect ratio of the image. |
ExportImageWidth |
Specify the width of the exported images, in pixels. The default value is 1024. Note: Changing only one of the values for height or width will override the aspect ratio of the image. |
ExportTablesAlso |
Set this to true to export tabular visualizations as images as well as tab separated text files. The default value is false. |
ExportTextAreas |
Set this to true to export text areas in the analysis as images in addition to the standard .html or .rtf files. The default value is false. |
ReportMaximum |
If all pages of tabular visualizations or trellised visualizations are set to be exported as images, specify how many of these exported segments to show in the export report. The default value is 3. Note: If this value is changed, old reports are not updated. |
ReportMaximum |
Specify the maximum size of the text files of the exported tabular visualizations to be shown in the export report, in kilobytes. If the size is exceeded, a link to the text file will be shown in the report. The default value is 1024. |
ReportMaximum |
If there are multiple versions of the same file - visualization or data table - in the export, specify how many of these to show in the export report. The default value is 3. Note: If this value is changed, old reports are not updated. |

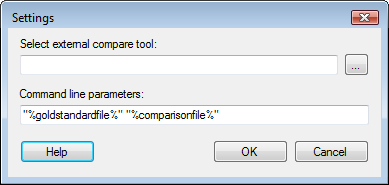

Settings Dialog
Use the Settings dialog to specify an external tool to compare differing image or text files in the gold standard and comparison export. To reach the Settings dialog, select Tools > Qualification > Settings.
Option |
Description |
Select
external compare tool |
Browse for an available tool to use to compare the differing files. This tool will be used when clicking the Compare button in the Comparison Results dialog. If no tool is specified, the default application for the file type of the selected file in the comparison dialog will be used. |
Command
line parameters |
Specify potential command line parameters for the chosen compare tool. |
