JMS and TIBCO EMS Configuration Editor

Overview

StreamBase Studio includes the JMS Configuration Editor, which provides a forms-based method for editing the server connection and destination specifications for one or more JMS or TIBCO EMS message servers. The JMS Configuration Editor supports the JMS or TIBCO EMS operators introduced in the 7.5 release series. In particular, the JMS Configuration Editor now stores all JMS configuration information in the current Studio project's server configuration file, and no longer in separate .jmsconf files.

The JMS and TIBCO EMS Adapter is implemented as a suite of five operators for JMS and five for TIBCO EMS, as shown in the following table:

JMS and TIBCO EMS Operators

JMS Adapter TIBCO EMS Adapter Description
JMS Consumer EMS Consumer Connects to a JMS or EMS destination on the target server and reads messages from it.
JMS Producer EMS Producer Connects to a JMS or EMS destination on the target server and sends messages to it.
JMS Connect EMS Connect Manually connects to or disconnects from the target JMS or EMS server.
JMS Ack EMS Ack Acknowledges receipt of messages from the connected server (when using the CLIENT_ACKNOWLEDGE or other explicit acknowledgement mode).
JMS Commit EMS Commit Either commits or rolls back transactions on a transacted JMS or EMS session.

Each server connection specification is saved with a per-project unique connection name, and each JMS destination has a unique name per configured server. When using one of the JMS or TIBCO EMS operators, you specify a configured server and destination name, and the operator does the work of making and maintaining the connection to the specified server.

Where is JMS Configuration Information Stored?

Starting with TIBCO StreamBase 7.5.4, the specifications for connecting to JMS and TIBCO EMS message servers are stored in an <adapter-configuration> element in the current project's primary server configuration file, usually named sbd.sbconf. As always, you are free to directly edit the XML of the sbconf file. However, Studio provides the JMS Configuration Editor described on this page as an easy-to-use forms-based method of editing JMS and TIBCO EMS specifications.

Note

The JMS Configuration Editor does not have an explicit Save button, and it does not automatically save changes. Be sure to save changes with Ctrl+S before switching between views and tabs of the Editor.

In releases before 7.5.4, JMS and TIBCO EMS configuration was specified in separate XML files with the .jmsconf extension that were independent of the project's server configuration files. The current JMS Configuration Editor can no longer be used to create new .jmsconf files or save in the .jmsconf format, but it can open such files and convert their server and destination specifications into the new <adapter-configuration> format. See Using Legacy Configurations.

Opening the JMS Configuration Editor

To open the JMS Configuration Editor for the current Studio project, use steps like the following:

  1. Start with a JMS or EMS operator icon on the EventFlow canvas:

    1. If you already have a JMS or EMS operator icon, select and double-click it to open its Properties view.

    2. If the current canvas does not have a JMS or EMS operator, drag the Adapters, Java Operators icon from the Palette view to the canvas. Type jms or ems in the search field to narrow the list of results, and select any JMS or TIBCO EMS operator. Select and double-click the newly placed icon to open its Properties view.

  2. Close any currently open JMS Configuration Editor. Close any other Editors of the current project's sbd.sbconf file.

  3. Click the Edit button in the Operator Properties tab of the Properties view. This opens the JMS Configuration Editor.

The default placement of the JMS Configuration Editor view is as a new tab in the same mid-central window where EventFlow canvases appear.

Best Practices and Cautions

Because the JMS Configuration Editor edits the current project's sbd.sbconf file, it is possible for more than one editor to have the same .sbconf file open at the same time, which can lead to confusing and conflicting editing situations. For the utmost editing clarity, follow the rules and best practices in this section when using the JMS Configuration Editor:

  • Always close any other editor currently open on any .sbconf file in the current project before clicking the Edit button to open a new JMS Configuration Editor session.

    This includes any text-based or XML editors open on the sbd.sbconf file itself, or on any subordinate .sbconf file included into the top-level file.

  • Do not mix JMS operators and TIBCO EMS operators in the same EventFlow module.

  • If you must have have connections to TIBCO EMS servers and to another JMS-compliant server in the same StreamBase application (for example, for a temporary migration application from a generic JMS server to a TIBCO EMS server), then:

    • Place operators for each connection type into separate EventFlow modules.

    • Configure one set of xMS server and destination connections at a time. Both sets can successfully co-exist in the same sbd.sbconf file, but only one set can be edited at a time.

  • The JMS Configuration Editor takes on different characteristics, depending on whether it is opened from a JMS operator or from a TIBCO EMS operator. In particular, Editors opened from an EMS operator show an error dialog if you try to select a non-EMS provider from the JMS Provider drop-down list.

  • The JMS Configuration Editor retains the editing characteristics of the last-opened xMS configuration type, if you open a new Editor session while the last session is still open.

    For example, consider the following sequence of events: 1. You open the Editor from a TIBCO EMS operator and leave that Editor session open. 2. You drag a JMS operator onto a canvas and click the Edit button in its Properties view. In this case, the newly opened Editor session behaves like an EMS editor, even though opened from a JMS operator. For example, it only allows you to select TIBCO EMS from the JMS Provider drop-down list.

    To recover from this situation, close all open JMS Configuration Editor sessions and any other text or XML editor sessions on any of this project's .sbconf files. Then re-open the JMS Configuration Editor session from the xMS icon of choice.

  • If you inadvertently violate these rules and try to open the JMS Configuration Editor from a JMS operator while an EMS operator editing session is already open (or vice versa), Studio does open the Editor session, but only shows server definitions that use the last-opened EMS (or JMS) type. A message across the top of the Editor view reminds you of the problem, like the following example:

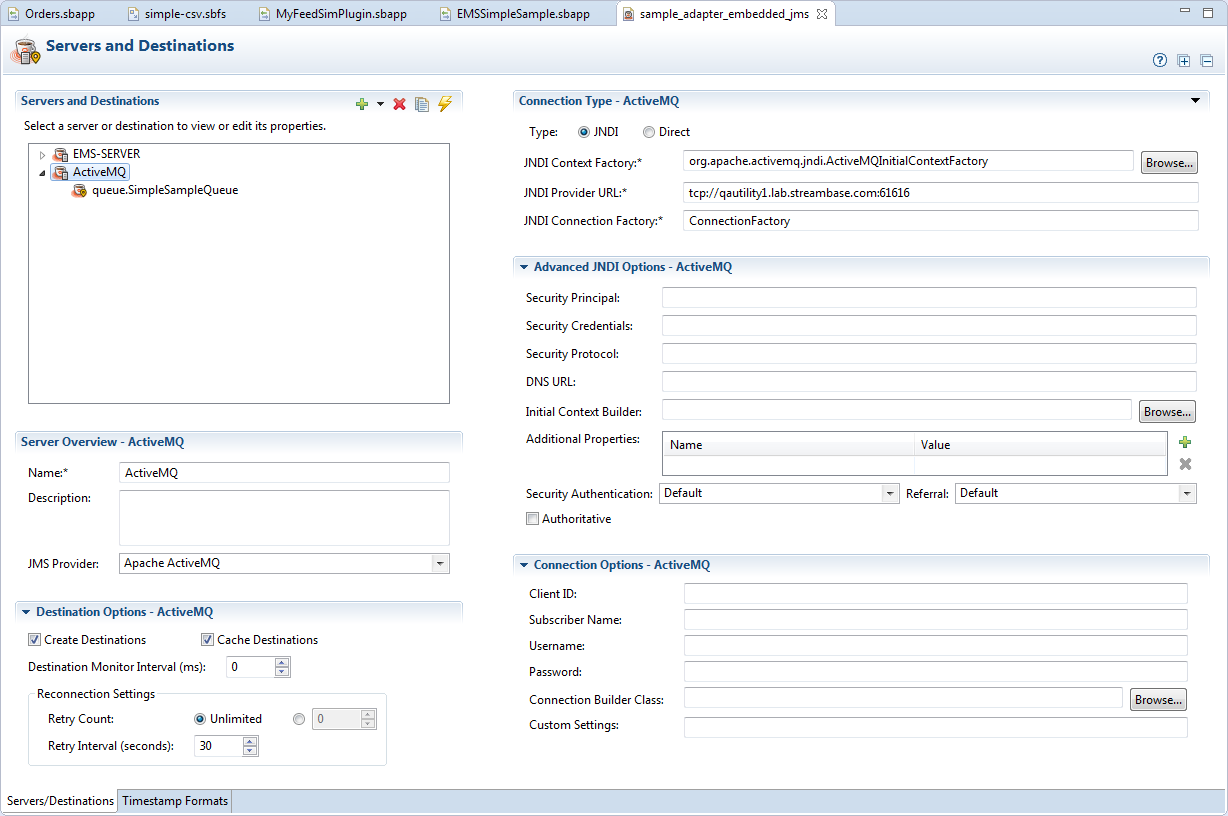

Server/Destinations Tab

Use the Server/Destinations tab to define connection configurations for JMS and TIBCO EMS servers, and to configure destinations for defined servers. This tab takes on a different look, depending on what it is currently editing:

  • The tab shows server configuration fields when a server's name is selected in the Servers and Destinations control on the upper left.

  • The tab shows destination configuration fields when a destination's name is selected.

Moreover, the set of available server configuration fields adapts to whether you select Direct or JNDI as the server connection type in the Connection Type quadrant in the upper right.

If you open the JMS Configuration Editor in a project with no previous JMS or EMS configuration in the current Studio project, then the Servers and Destinations control is blank. Click the green plus sign () to create a new server definition; this creates a server with the default name Server, which has one destination with the default name Destination. Each defined server must have at least one defined destination.

To rename a newly added server configuration, select the default name and enter a new name in the Name field of the Server Overview section. To rename the destination, select the default name and enter a new name in the Name field of the Destination Overview section.

See Minimum Configuration Requirements below for a discussion of the few server configuration settings you must specify to allow a successful connection.

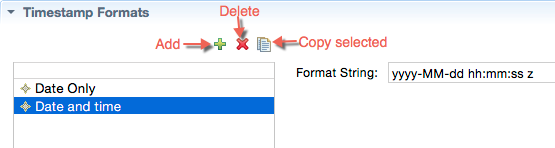

Timestamp Formats Tab

The JMS Configuration Editor has two tabs selectable along its bottom edge. The primary Server/Destinations tab is described in other sections of this page.

The Timestamp Format tab has the single purpose of gathering timestamp format definitions for use in the Server/Destinations tab as part of the configuration of destinations.

A field, property, or header in a JMS or EMS message might represent a timestamp as a string such as yyyy-MM-dd. Use this tab to specify the format of that string, and provide a name for that format. Your named formats then appear in the Timestamp Format drop-down list in the Destination Overview section of each destination's configuration.

Define your time formats using the format characters recognized by the java.text.SimpleDateFormat standard.

If you do not specify any custom timestamp format strings in this tab, the Timestamp Format drop-down list in the destination configuration section contains the single format “DefaultTimestampFormat”. This default format string is:

MM/dd/yyyy hh:mm:ss aa

Minimum Server Configuration Requirements

The Server/Destinations tab allows for maximum flexibility in configuring JMS server and destination definitions, and allows for many special-case settings. At first glance, the number of fields in this tab can appear daunting. However, to make a successful connection to a JMS or TIBCO EMS message server requires only a few settings.

The particular minimum settings required depend on the JMS Provider you are using. The JMS Operators have native support for four JMS Providers:

  • TIBCO Enterprise Messaging Service™ (EMS)

  • Apache ActiveMQ

  • IBM WebSphere Application Server

  • Solace Systems

The required settings for these four JMS providers are shown in Configuration Settings Examples on the Authoring Guide's JMS Operators page.

See Connection Type Section, JNDI and Connection Type, Direct below for examples and explanations of the fields you must configure in the Connection Type section to allow a simple JMS or EMS connection to proceed.

For a successful connection, you also need the JAR files that implement JMS client functionality for your JMS Provider, as listed in JAR File Requirements. These JAR files must either be listed in the current Studio project's Java Build Path, or in the <java-vm> section of the project's sbd.sbconf file, or both.

When the minimum configuration settings are in place, test your connection by selecting your server's name in the Servers and Destinations control, and clicking the Test Connection button. This results in a dialog that reports either the success or failure of the connection attempt.

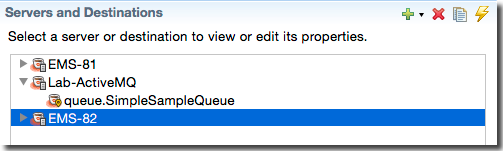

Configuring More Than One Server

Both the JMS Configuration Editor and the underlying <adapter-configurations> element in sbd.sbconf support the configuration of more than one JMS and/or EMS servers, and you can easily mix configurations for different JMS Providers:

In the underlying XML, each server's configuration, along with all of its configured destinations, is kept in a separate <jms-server> child element:

<adapter-configurations>
  <adapter-configuration name="jms">
    <sb-jms-adapter-config
      adapter-class="com.streambase.sb.adapter.jms2.JMSConsumer">
      <jms-servers>
        <jms-server name="EMS-81" provider-name="TIBCO EMS"
          connection-factory-name="ConnectionFactory"
          provider-context-factory="com.tibco.tibjms.naming...
          ...
          <destinations>
            <destination is-topic="false" name="queue.SimpleSampleQueue"/>
            <destination is-topic="false" name="queue.TextMessageQueue2"/>
          </destinations>
        </jms-server>
        <jms-server name="Lab-ActiveMQ" provider-name="Apache ActiveMQ"
          connection-factory-class="org.apache.activemq...
          ...
          <destinations>
            <destination name="queue.SimpleSampleQueue"/>
          </destinations>
        </jms-server>
      </jms-servers>
    </sb-jms-adapter-config>
  </adapter-configuration>
</adapter-configurations>

As illustrated in this XML excerpt, there is no conflict between JMS servers from different JMS Providers. However, you must configure each server's configuration one at a time, independent of each other, following the best practice rules in Best Practices and Cautions above.

Using Legacy JMS and EMS Adapter Configurations

The JMS and EMS Input Adapter and Output Adapter from StreamBase release 7.5.3 and earlier are still present but deprecated in release 7.5.4 and later. Your StreamBase applications that use these adapters still compile and run under current StreamBase Server releases.

If you must maintain an application that uses the older JMS or EMS Adapters, then keep an installed copy of TIBCO StreamBase 7.5.3 or earlier. You can use the previous version of the JMS Configuration Editor from the older release to continue maintaining your .jmsconf files until you are ready to upgrade.

However, as noted above, the JMS Configuration Editor included with TIBCO StreamBase 7.5.4 and later does not save configurations in the .jmsconf file format. TIBCO strongly recommends upgrading your applications to take advantage of the features of the new JMS operator suite in place of the Adapters provided in earlier releases.

You can easily migrate the server and destination configurations from an existing project's .jmsconf file. To do so:

  1. Add one of the new JMS or EMS operators to an EventFlow canvas. Double-click to select the newly added icon's Properties view.

  2. In the Properties view's Operator Properties tab, click Import. This opens a file selection dialog.

  3. Navigate to the project folder that contains your existing .jmsconf file. Select the file and click Open.

  4. This opens the JMS Configuration Editor with the server name from the .jmsconf file newly added to the list of servers, along with its configuration and all of its defined destinations.

  5. Press Ctrl+S to save the imported configuration back to the current project's sbd.sbconf file.

The import always preserves the server name specified in the .jmsconf file. This means:

  • If the current project has a configured server with the same name, its configuration is overwritten by the import.

  • Every import of a configuration with the same server name overwrites the previous configuration for that server name. Thus, if you used the same server name in separate .jmsconf files for JMS Input and Output Adapters, and you import each .jmsconf file separately, the last-imported configuration is the one used.

Unsupported Features

The following features of the older JMS Configuration Editor from StreamBase release 7.5.3 and earlier have no corresponding feature in the Editor of release 7.5.4 and later:

Unsupported Feature from 7.5.3 and Earlier Workaround
The previous Editor's Field Maps tab for name maps, header maps, and property maps.* Instead, consider receiving your JMS messages in their JMS-native forms, then placing a StreamBase Map operator downstream from the JMS or EMS Consumer icon, and mapping field and header names there.
The previous Editor's Source tab. Instead, close all instances of the JMS Configuration Editor, then open the current project's sbd.sbconf file using right-click, then Open WithXML Editor.
The FileOpenJMS Configuration File menu option. This is no longer needed, because there is no longer a separate file type to hold JMS configurations.
The Import settings from TIBCO BusinessWorks feature of the FileOpenJMS Configuration File menu option. Instead, you can use StreamBase release 7.5.3 or earlier to import the BusinessWorks settings into a .jmsconf file, then import that .jmsconf file using release 7.5.4 or later.

*However, the Timestamp Formats section of the old Field Maps tab is preserved in the Timestamp Formats tab of the new Editor.

Editor Section: Servers and Destinations

Each server and each destination within it must have a unique name per Studio project folder. When you add a new server in the Servers and Destinations section of the Servers/Destinations view, provide a name for it in the Server Overview section.

Use the tool bar at the upper right to add and remove servers and destinations, and to test server connections:

  • To add a server or a destination, click the green plus sign (), or use the down arrow to the right of the plus sign to select Add Server. This adds an empty server definition named Server with one empty destination named Destination. To add only a new destination, select a server name, then use the down arrow to select Add Destination.

  • To remove a server or a destination, select it and click the red X button (). When you remove a server, all of its destinations are also removed. You can press Ctrl+Z to undo a deletion.

  • To duplicate the configuration for a server or a destination, select it and click the white Duplicate button (). When you duplicate a server configuration, all its configured destinations are also copied.

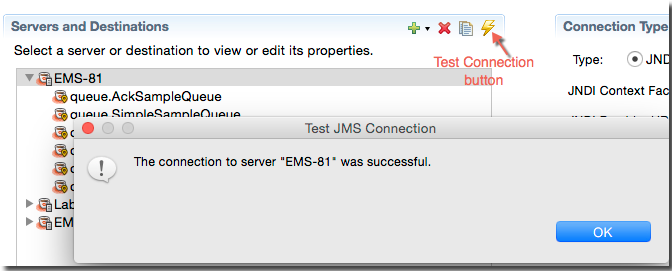

  • To test a configured server's connection, select a server name, and click the yellow Test Connection button (). You receive a report of connection success or a diagnostic if the connection does not succeed.

Newly added servers must have a certain minimum set of configured fields for a test connection to that server to succeed. See Minimum Server Configuration Requirements.

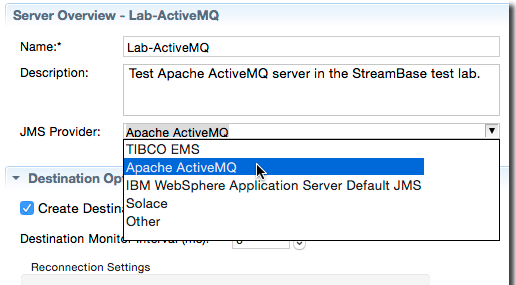

Editor Section: Server Overview

Use the Server Overview section to specify a name and optional description for the selected server.

If you opened the JMS Configuration Editor from a JMS operator, the JMS Provider drop-down list shows the four supported JMS Providers, plus Other. Select the appropriate JMS Provider or select Other if you intend to define your own JMS Provider configuration.

Editor Section: Destination Options

Use the Destination Options section for the selected server to specify certain defaults for all destinations configured for this server. The following image shows the default selections for this section.

The following table describes the Destination Options settings of this section.

Option Description
Create Destinations Boolean. When selected (the default), this indicates that destinations are to be created when first used. When unselected, this means to look up destinations in JNDI. If supported by the JMS provider, destinations can be created even if they already exist. Creating destinations is faster than looking them up in JNDI.
Cache Destinations Boolean. When selected (the default), this indicates that destinations are to be cached once created. Caching provides better performance. However, if you are creating thousands of destinations, caching them may increase your memory footprint.
Destination Monitor Interval Integer in milliseconds. When non-zero, enables monitoring the health of JMS destinations on a given server at intervals you specify in milliseconds. The default setting is zero, which means destinations are not monitored.
Reconnection Settings
Retry Count Select either Unlimited or use the number control to specify the number of retries to attempt. By default, JMS adapters only try to connect to a JNDI or JMS server once before giving up. Use this control to specify zero or more than one retry attempts, or an unlimited number of attempts.
Retry Interval (seconds) Integer in seconds. Set the Retry Interval value to specify the number of seconds between connection retry attempts. The default is 30 seconds.

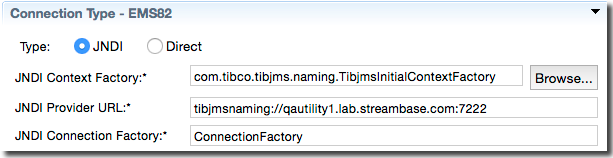

Editor Section: Connection Type, JNDI

The minimum settings for a JNDI connection to TIBCO EMS and Apache ActiveMQ require only three settings for a JNDI type connection:

  • JNDI Context Factory: the fully qualified name of the class that implements the JNDI Context Factory API. For the four supported JMS Providers, this field is filled in for you when you select a provider name from the JMS Provider drop-down list in the Server Overview section. If you are configuring a different JMS Provider, obtain the name of this class from the provider vendor's documentation.

    You must provide a connection factory class name to instantiate. It is assumed that this class implements a constructor taking one String parameter that represents the URL of the JMS broker, which you must also specify in the next field if it is not localhost.

  • JNDI Provider URL: The URI of the JMS server to connect to, whether running for development purposes on localhost or on a host in your site's network. JNDI Provider URIs start with the name of the JMS protocol (which is proprietary for each JMS Provider), followed by the DNS name or IP address of the server of interest, followed by a colon and the port number on which the JMS service is running.

  • JNDI Connection Factory: This is the default string ConnectionFactory or a string specific to your JMS Provider.

These minimum settings are made in the Connection Type section in the upper right quadrant of the Server/Destinations tab, when the JNDI connection type is selected.

Remember that a successful connection requires the JAR files that implement JMS client functionality for your JMS Provider, as listed in JAR File Requirements. These JAR files must either be listed in the current Studio project's Java Build Path, or in the <java-vm> section of the project's sbd.sbconf file, or both.

You can test your configuration's connection to its specified server as described in Minimum Server Configuration Requirements.

Editor Section: Connection Type, Direct

To specify a connection to a JMS or TIBCO EMS server using the Direct connection type, you must specify two fields:

Connection Factory Class

With two of the four supported JMS Provider names selected in the JMS Provider drop-down list in the Server Overview section, when you click the Direct button to specify that connection type, the name of the connection factory class is automatically filled in in this field. Those two Providers are TIBCO EMS and Apache ActiveMQ.

For IBM WebSphere AS Default JMS and Solace Systems, you must provide the fully qualified name of the direct connection class provided in the documentation for those Providers.

Connection Provider URL

Enter the URL for the JMS server in the form tcp://host:port.

Examples, first for a direct connection to TIBCO EMS:

For an Apache ActiveMQ direct connection:

Of course, direct connections have the same JAR file requirements listed in the previous section, and can be tested with the Test Connection button described in Minimum Server Configuration Requirements.

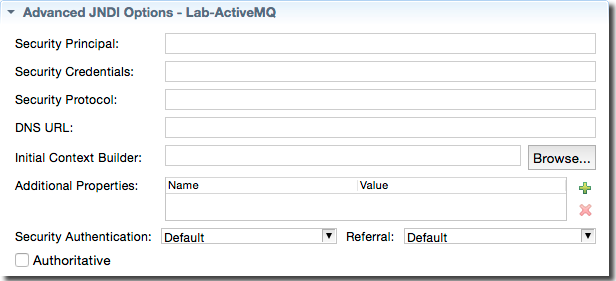

Editor Section: Advanced JNDI Options

The Advanced JNDI Options are sometimes needed to establish the proper InitialContext for JNDI lookups. These fields have no default values. Contact your site's JMS Network Administrator for the correct values for your site.

The following table describes the fields of the Advanced JNDI Options section

Option JNDI Correspondence or other
Security Principal javax.naming.Context.SECURITY_PRINCIPAL
Security Credentials javax.naming.Context.SECURITY_CREDENTIALS
Security Protocol javax.naming.Context.SECURITY_PROTOCOL
DNS URL javax.naming.Context.DNS_URL
Initial Context Builder Fully-qualified name of the Java class implementing com.streambase.sb.adapter.common.jms.common.JNDIInitialContextBuilder
Additional Properties Defines additional properties that may be required beyond those defined in javax.naming.Context. These may be site-specific or JMS Provider specific properties. Use the green plus button to add a row, whose initial values are Name and Value. Select the newly added row to edit these values as needed.
Security Authentication javax.naming.Context.SECURITY_AUTHENTICATION
Referral javax.naming.Context.REFERRAL
Authoritative javax.naming.Context.AUTHORITATIVE

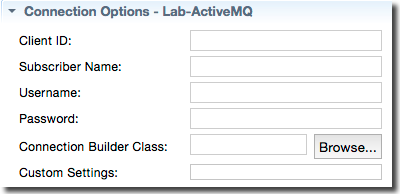

Editor Section: Connection Options

The values of the Connection Options section are optional unless your JMS Provider requires authentication information such as a user name and password.

The following table describes the Connection Options properties, which are all string values.

Option Description
Client ID Causes the operator to call javax.jms.Connection.setClientID() with the provided value.
Subscriber Name Causes a durable subscription to be made and used with the specified subscriber name. This setting is valid only when used in conjunction with destinations that are Topics.
Username The username to use when connecting to the JMS server.
Password The password to use when connecting to the JMS server.
Acknowledge Mode The mode used to acknowledge JMS messages. Defaults to AUTO_ACKNOWLEDGE. You can also select DUPS_OK_ACKNOWLEDGE, and for TIBCO EMS only, NO_ACKNOWLEDGE.
Connection Builder Class The fully-qualified name of a class that implements the com.streambase.sb.adapter.common.jms.common. ConnectionBuilderInterface, responsible for creating and initializing JMS Connection objects. If this parameter is not specified, the operator's default implementation is used.
Custom Settings An arbitrary string passed verbatim to the implementer of the CustomConnectionBuilder interface.

Editor Section: Destination Overview

A destination is a queue or a topic on a particular server.

Select a destination name in the Server and Destinations control, which puts the JMS Configuration Editor into its destination editing mode.

Use the Destination Overview section to specify a name for the selected destination, and its Destination Type, either Topic or Queue.

Use the Custom Converter Settings field to enter an arbitrary string that is to be passed verbatim to the message converter specified in the Consumer Options or Producer Options section. Remember that the string you specify here will be stored in an XML element in the sbd.sbconf file. You must therefore escape characters that could be interpreted as part of the enclosing XML, such as < and >. Escape such characters with double quotes, or by substituting a character entity.

The Timestamp Format control is a drop-down list that by default has a single entry, defaultTimestampFormat. This default format string is defined internally as MM/dd/yyyy hh:mm:ss aa. To add your own timestamp format entries to this drop-down list, use the Timestamp Formats tab as described in Timestamp Formats Tab above.

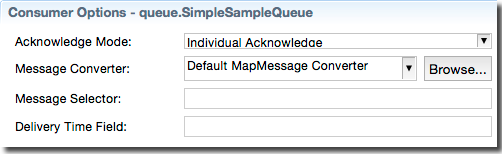

Editor Section: Consumer Options

The options in the Consumer Options section apply when the currently selected destination is used by a JMS Consumer or EMS Consumer operator.

The following table describes the Consumer Options section of each destination's configuration.

Option Description
Acknowledge Mode The mode used to acknowledge JMS messages for the selected destination. Defaults to Individual Acknowledge. You can also select Dups OK Acknowledge, Client Acknowledge, or Auto-Acknowledge.
Message Converter Specifies how the currently selected destination translates messages into a tuple. Four predefined message translation types are supported: Default MapMessage Converter (this control's default selection), Default TextMessage Converter, Default BytesMessage Converter, and Default Simple Message Converter . You can also select Custom, in which case you must provide a class that implements the FromJMSMessageConverter interface.
Message Selector The message selector expression (if any) to use for this destination.
Delivery Time Field The field in the StreamBase tuple that will be marked with a message's delivery time.

Editor Section: Producer Options

The options in the Producer Options section apply when the currently selected destination is used by a JMS Producer or EMS Producer operator.

The following table describes the Producer Options section of each destination's configuration.

Option Description
Message Converter Specifies how the currently selected destination translates tuples into JMS messages. Four predefined message translation types are supported: Default MapMessage Converter (this control's default selection), Default TextMessage Converter, Default BytesMessage Converter, and Default Simple Message Converter . You can also select Custom, in which case you must provide a class that implements the ToJMSMessageConverter interface.
Delivery Mode Messages from JMS Producer operators can be delivered via either of two delivery modes, Non-Persistent (default) or Persistent. TIBCO EMS Producer operators have a third mode available, Reliable Delivery.
Time-To-Live (ms) Specifies the number of milliseconds to wait after a message is published before destroying the message if it is not yet delivered. The default is zero.
Message Priority (0-9) Specifies the urgency of a message, from 0 (lowest) to 9 (highest). The JMS Provider tries to deliver higher-priority messages before lower-priority ones, but this is not guaranteed. The default setting is 4.
Disable Message ID A JMS provider may be able to reduce message overhead when given a hint that a client does not use message IDs. Select this check box if your application ignores IDs.
Disable Message Timestamp A JMS provider may be able to reduce message overhead when given a hint that a client does not use timestamps. Select this check box if your application ignores timestamps.
