Configuring the Adapter for PeopleSoft

In order to configure PeopleSoft, you must create and register the PeopleSoft application (SNAPCAT) in the catalog path, add the underlying SQL adapter, add the first PeopleSoft connection, and, optionally, configure a JSCOM3 listener to ensure password authentication for PeopleSoft 8 and higher.

Creating the SNAPCAT Application

Before you can configure the PeopleSoft adapter, the SNAPCAT application must be created and added to the application path of the server. This can be done through the WebFOCUS Reporting Server browser interface.

Note: In the server release 7.7.04 and higher, it is no longer necessary to include the SNAPINST application directory in the application PATH. This directory is automatically added or removed from the PATH when needed.

Create the SNAPCAT Application

Procedure

From the WebFOCUS Reporting Server browser interface menu bar, select Applications.
Right-click the Application Directories folder and select New, Application Directory.

The Create New Application window opens, as shown in the following image.
Change the Application Name to snapcat. Make sure it is all in lowercase.
Click OK.

Adding the SQL Database Adapter

The Adapter for PeopleSoft is an enhanced version of the underlying data source adapter. The adapter must be added into the server configuration.

When you add an SQL adapter, there is no need to provide configuration parameters since these connection parameters are stored in the server profile, which is accessible at all times to any user or application connecting to the server.

For most applications, the data access is then secured through procedure logic and operating system security. With PeopleSoft, this is not possible as there may be very large numbers of users who do not have operating system login IDs. Instead, these configuration parameters are supplied later when configuring connections to PeopleSoft data sources.

As a recommended practice when adding the new adapter, you may initially supply the configuration parameters, test data source connectivity, and then delete the connection statement in the server profile. While not required, when you attempt to create a connection to the PeopleSoft data source, this process may save significant time.

Configuring an Adapter

Procedure

From the WebFOCUS Reporting Server browser interface Applications page, click Get Data.
or
From the ibi Data Migrator desktop interface, expand the Adapters folder.
In the WebFOCUS Reporting Server browser interface, the Get Data page opens showing your configured adapters. In the ibi Data Migrator desktop interface, the Adapters folder opens.
In the WebFOCUS Reporting Server browser interface, click the (+) button, and find the adapter on the page or, in the ibi Data Migrator desktop interface, exapnd the Available folder if it is not already expanded.

In the WebFOCUS Reporting Server browser interface, you can select a category of adapter from the drop-down list or use the search option (magnifying glass) to search for specific characters.
In the ibi Data Migrator desktop interface, expand the appropriate group folder and the specific adapter folder. The group folder is described in the connection attributes reference.
Right-click the adapter name and/or version and select Configure.

The Add Adapter to Configuration pane opens.
Enter values for the parameters required by the adapter, as described in the chapter for the specific adapter you want to configure.
Click Configure. The configured adapter is added to the Configured list in the WebFOCUS Reporting Server browser interface or in the Adapters list in the ibi Data Migrator desktop interface resources tree.

In the WebFOCUS Reporting Server browser interface, the adapter remains on the Available Adapters list with an asterisk to indicate that at least one connection has been configured. You can configure additional connections from either the Configured or Available list by right-clicking the adapter and clicking Add Connection.

Configuring PeopleSoft Password Authentication

To leverage integrated authentication against PeopleSoft, a JSCOM3 listener must be configured using the WebFOCUS Reporting Server browser interface. When completed, all user requests will pass calls to the PeopleSoft Component Interface architecture for authentication. If the configuration is either not using PeopleSoft or the connections are to be configured with TRUSTED authentication, then this step is not necessary.

Note: At this time, the PeopleSoft Component Interface does not support LDAP, even though the PeopleSoft Internet Architecture does read from LDAP repositories in general. This limitation means that if your PeopleSoft site uses LDAP integration for user authentication only, TRUSTED authentication is possible. To leverage your LDAP repository for WebFOCUS, use any of the standard integration methods available. For details, see the WebFOCUS Security and Administration manual.

Before configuring JSCOM3, the following conditions must be met:

Ensure that the Publish and Subscribe services are running on the PeopleSoft Application Server. By turning these on, the jolt listener becomes active. Usually, these services are used for application messaging integration requirements, but the Adapter for PeopleSoft uses the same technology for authentication. No particular component interface must be accessible for the user to authenticate.
Several API files delivered with PeopleSoft must be made available to the WebFOCUS Reporting Server directory. These files are located in the PeopleSoft file server libraries in the following locations:
```
[PeopleSoft file server]\web\PSJOA\psjoa.jar
```

If the WebFOCUS Reporting Server is installed on the same computer as your PeopleSoft Application Server, then you may configure JSCOM3 to point directly to the files. Otherwise, the files must be copied to the computer with the WebFOCUS Reporting Server. In this situation, it is recommended (but not required) that they be placed in your EDACONF\bin directory.

Configure the JSCOM3 Listener

To configure the JSCOM3 listener:

Procedure

From the WebFOCUS Reporting Server browser interface menu bar, select Workspace.
From the navigation pane, expand the Java Services folder.
Right-click DEFAULT, and select Properties.

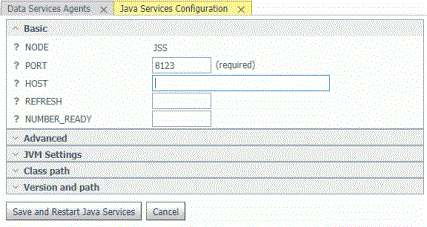

The Java Services Configuration pane opens.

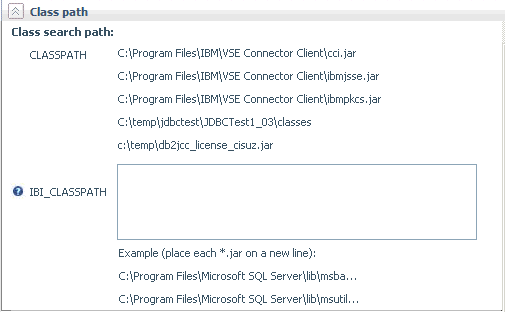

Expand the Class path arrow.
Type the location of the psjoa.jar file in the IBI_CLASSPATH field, including the file name, for example, C:\Program Files\PeopleSoft\lib\psjoa.jar

Note: When upgrading the PeopleSoft Application Server after having performed these configuration steps, you must update the PeopleSoft files (psjoa.jar).

Adding the First Connection to PeopleSoft

Although multiple PeopleSoft connections can be created, the first connection requires slightly different management steps. The reason for this is that before any connections to PeopleSoft data sources can occur, a base layer of application metadata is created and configured. This occurs transparently for the Administrator, but is a slightly different connection management process than when adding additional connections.

To create the first connection:

Select and type a DBA password.
The DBA password is the value that is used as a metadata access key. To access the WebFOCUS Reporting Server browser interface, the administrator must know this value. Users outside of the WebFOCUS Reporting Server browser interface do not have metadata access without first logging in to PeopleSoft through this integration.
Add a PeopleSoft Connection.

Note: In server release 7.7.04 and higher, it is no longer necessary to include PSLOGIN as a service profile.

Add the First PeopleSoft Connection

Procedure

Open the WebFOCUS Reporting Server browser interface.
From WebFOCUS Reporting Server browser interface menu bar, click Adapters.
Expand the Available folder, if it is not already expanded.
Expand the ERP group folder.
Right-click Peoplesoft, and select Configure.
Click Configure.
Click Next.

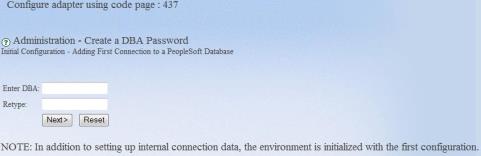

The Administration - Create a DBA Password window opens.
In the Enter DBA and Retype fields, specify a DBA of up to eight characters, then click Next.

The Administration - Create a New PeopleSoft Connection window opens.
Type the necessary information, test the connection, and if successful, click Configure. If not successful, edit the information until the test is successful, then click Configure. For more information, see step 5 in Add a PeopleSoft Data Source Instance.

Note: The Configure button becomes available once the connection test to the selected RDBMS is successful.
Once the configuration finishes, click Next.

Most of the parameters can be changed in the future, but the connection cannot be created without initially supplying correct data source connectivity information. For details on the required information, see Administration - Create a New PeopleSoft Connection Window.

Tip: A worksheet is provided to assist you in gathering the information you will need to type on this screen. For details, see PeopleSoft Connection Worksheet.

Processing may take several minutes to complete. Once completed, you may begin managing your new PeopleSoft Connection by adding synonyms and administering security access.

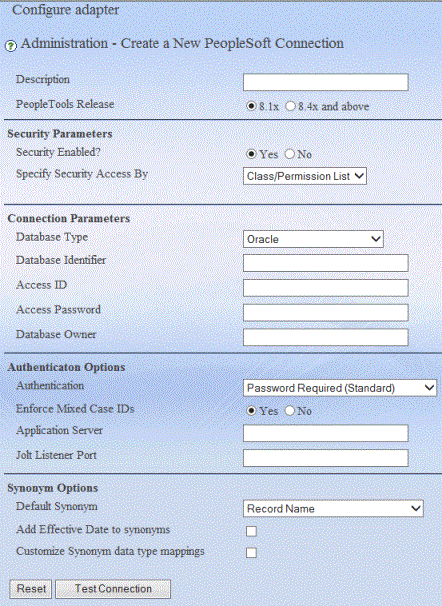

Administration - Create a New PeopleSoft Connection Window

The Administration - Create a New PeopleSoft Connection window contains the following fields/options:

Description

Is a description that identifies the current server configuration.

PeopleTools Release

Is the major PeopleSoft PeopleTools release number to access.

Security Parameters

Security Enabled?

Determines whether to enforce PeopleSoft data access security. The options are Yes and No. Yes is the default value.

Specify Security Access By

Determines the way in which the PeopleSoft administrator enables users to access the adapter and PeopleSoft data. The options are:

Class/Permission List. Manages users in operating class (permission list) grouping.
User/Operation ID. Manages users by individual user IDs.

Connection Parameters

Database Type

Is the Data source type. The options are: Oracle, MS SQL Server, and Db2 Universal Database.

Database Identifier

Is the data source identifier or system data source name.

If the server is co-located with the data residing in Oracle, do not type anything in the Database Identifier field.

Server

Name of the Database Server (for SQL Server only, not Oracle or Db2). If the instance of SQL Server you are configuring for is not running with the default port number, then the following syntax should be used:

nnn.nnn.nnn.nnn\instance_name, port

where

nnn.nnn.nnn.nnn

Is the IP address of the machine where SQL Server is running.

instance_name

Is the name of the SQL Server instance.

port

Is the listening port of the SQL Server instance.

Access ID

Is the RDBMS login ID for data source connectivity. Typically, it is the same login ID PeopleSoft uses to access the data source. There are minimum data access requirements that the ID must have. For details, see Setting Up the PeopleSoft Access ID.

Access Password

Is a password associated with the access ID.

Database Owner

Is the data source owner identifier or the schema owner depending on your data source. The owner ID is used to fully qualify SQL requests passed to the data source. This allows multiple data source instances or schemas to exist in a single data source. Typical defaults are SYSADM on Oracle and dbo on Microsoft SQL Server.

Authentication Options

Authentication

Determines the authentication used in your application. The options are:

TRUSTED (Alternate Authentication). Expects a valid pre-authenticated PeopleSoft user ID to be passed to the server to enable data access. This is useful with LDAP, Operating System security, or some other application that authenticates the user.
Password Required (Standard). Expects a valid user ID and password before allowing data access. This is the default and is recommended for most environments.

Enforce Mixed Case IDs

Determines whether passwords are case-sensitive. Select Yes to enforce the PeopleSoft 8 use of mixed case user IDs or select No to revert to PeopleSoft 7.x case insensitivity.

If Password Required (Standard) is selected, two additional input fields are displayed:

Application Server

This is the IP address of the machine on which the JOLT Listener resides for the configured PeopleSoft environment.

JOLT Listener Port

Is the port number of the JOLT Listener.

Synonym Options

Default Synonym

Is the type of synonym to default to when creating new metadata. The options are: Record Name, Record Name with Prefix, Record Name with Suffix, Table Name, Table Name with Prefix, Table Name with Suffix.

Note: If you specify any of the options with Prefix or Suffix, the following additional input box is displayed.

Prefix/Suffix Default

Enter the prefix or suffix you wish to prepend or append to the synonym name.

Add Effective Date to synonyms

If this option is selected, additional field entries are added to any synonym created (or refreshed) after the configuration is saved. These new field entries provide the End Date of any row where an effective date field is part of the key. If an effective sequence is also part of the key, then the effective sequence field is also used in the calculation for the End Date field. In addition, filters are added to the synonym for the following:

Current Record

and, if Effective Sequence field is present, the following filters are also added:

First Effective Sequence
Last Effective Sequence
All Effective Sequences

These filters can be used in requests against the synonym and are available in the WebFOCUS reporting tool set.

To take advantage of this feature when migrating from an earlier release to release 7.7.02, first following the instructions in Migrating from 7.1x and 7.6.x to 7.7, then edit each connection that needs this functionality, select the new option, and save the configuration. All synonyms should now be refreshed to have the new fields/filters added to them.

Remove Data Mask Fields

This option will remove any masking fields from the row level security segment of the generated synonym. These fields are identified by having _MSK at the end of the field name. The masking field along with the masked field will not be present in the synonym if this option is checked. This is for version 9 Campus Solutions Customers who have implemented masking using SACR.

Customize Synonym data type mapping

This option specifies how Long Character and CLOB data types in the PeopleSoft table should be reflected in the synonym.

Long Character Fields as

Fixed Length - Any Long Character or CLOB will be converted to the Fixed Length value. In the following image, the synonym will have A500V for these two data types.

Native Length - Long Character fields will reflect the length as specified in the PeopleSoft table definition, CLOB will be converted to the Fixed Length value. In the following image, the synonym will have A500V for the CLOB data types.

Length or CLOB Length

Length - This is the length that will be used for both Long Character and CLOB fields if Fixed Length is selected.

CLOB Length - This is the length that will be used for all CLOB fields if Native Length is selected.

If this is a new connection configuration, all synonyms created after the configuration is saved will have these values. If an existing connection is being modified, synonyms will have to be refreshed to use these values.

PeopleSoft Connection Worksheet

Use the following worksheet to record connection configuration information and keep it for future reference.

Option Name	Response	Description
Description		Row.
DBA		8-character identifier for linking metadata to PeopleSoft security rules. Must be consistent across multiple connections.
PeopleTools Release		Major release of PeopleTools (8.1x, or 8.4x and above)
Security Enabled?		Specifies whether PeopleSoft data security (row-level and access group) is enforced.
Specify Security Access By		Specifies security access; by User (OPRID) or permission list (OPRCLASS).
Database Type		Designation for RDBMS. The options are Oracle, MS SQL Server, or Db2 Universal Database.
Database Identifier		Database System Identifier (SID) or Source Name used by the appropriate DBMS client software on the server.
Server		Name of the Database Server (for SQL Server only, not Oracle or Db2). If the instance of SQL Server you are configuring for is not running with the default port number, then the following syntax should be used: nnn.nnn.nnn.nnn\instance_name, port where nnn.nnn.nnn.nnn Is the IP address of the machine where SQL Server is running. instance_name Is the name of the SQL Server instance. port Is the listening port of the SQL Server instance.
Access ID		ID used by PeopleSoft to connect to the RDBMS.
Access Password		Password associated with the access ID.
Database Owner		Data source owner ID for the PeopleSoft data source.
Authentication		Select Password to always verify the user ID/password. Select Trusted to accept only user ID. Trusted authentication is useful when deploying in previously authenticated environments, such as a Portal.
Enforce Mixed Case IDs		Provides backwards compatibility for sites that previously used a case-insensitive version of PeopleSoft. (Yes or No)
Application Server		This is the IP address of the machine on which the JOLT Listener resides for the configured PeopleSoft environment.
JOLT Listener Port		Is the port number of the JOLT Listener.
Default Synonym		The type of synonym to default to when creating new metadata. Record Name Record Name with Prefix Record Name with Suffix Table Name Table Name with Prefix Table Name with Suffix Note: If you specify any of the options with Prefix or Suffix, an additional input box is displayed for your Prefix or Suffix entry.
Prefix/Suffix Default		Enter the prefix or suffix you wish to prepend or append to the synonym name.
Add Effective Date to synonyms		If this option is selected, additional field entries are added to any synonym created (or refreshed) after the configuration is saved. These new field entries provide the End Date of any row where an effective date field is part of the key. If an effective sequence is also part of the key, then the effective sequence field is also used in the calculation for the End Date field. In addition, filters are added to the synonym which can be used in requests against the synonym and are available in the WebFOCUS reporting tool set.
Add Remove Data Mask Field		This option will remove any masking fields from the row level security segment of the generated synonym. These fields are identified by having _MSK at the end of the field name. The masking field along with the masked field will not be present in the synonym if this option is checked. This is for version 9 Campus Solutions Customers who have implemented masking using SACR.
