High Level Flow

In this section:

Authorize
Upload Data Set
Profile Data
Deduplicate
Numeric Analysis
Correlation Analysis
K-Means Clustering Analysis
Download Profile
Download Correlation Analysis Results
Download K-Means Clustering Results
Get List of Rules
Match Rules
DQ Analysis With Rules
Download All Results
Download Results Summary
Delete Analysis Results
Delete Entire Dataset
Transactional Requests

There are two ways of running Data Quality (DQ) analysis via the REST API services:

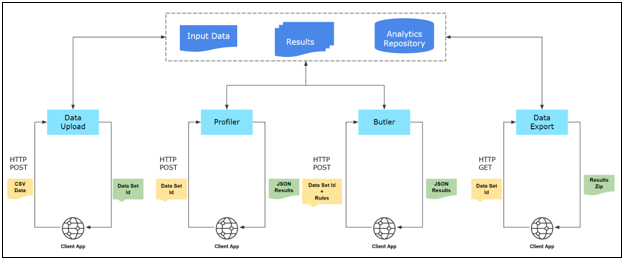

Upload and analyze an entire data set.
This is the recommended method for processing data in batch mode.

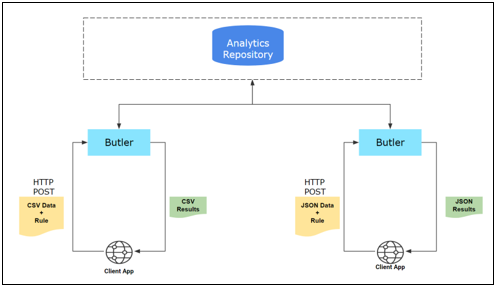

Send one or more transaction records at a time.
This is the recommended method for streaming data.

Batch Mode	Transaction Mode
Upload and analyze the entire data set.	Send one or more transaction records in a request.
Profile data.	Profile analysis is not applicable for individual records.
Apply multiple rules to different attributes of a data set.	Execute one rule per request.
Calculate Profile and DQ Scores.	Scoring is not applicable for individual transactions.
Save and retrieve input data, detailed results, and summarized reports.	Input requests and responses are not stored in the file system. Summarized results are stored in the transaction details table in the database.

Analyze an entire data set

Analyze one or more records one Rule at a time

Authorize

Description

Use this endpoint to send a request with the user account credentials and receive a response with an access token.

Endpoint

https://{{host}}:9803/api/v1/auth

HTTP Method

POST

Request

username	Name of the user account.
password	Password of the user account.

Response

access_token	Access tokens are used in token-based authentication to allow an application to access an API. The application receives an access token after a user successfully authenticates and authorizes access, then passes the access token as a credential when it calls the target API.
refresh_token	Typically, a user needs a new access token after the previous access token granted to them expires. A Refresh Token is a credential artifact that OAuth can use to get a new access token without user interaction. This allows the Authorization Server to shorten the access token lifetime for security purposes without involving the user when the access token expires.
scope	Default: openid The application uses OIDC to verify the user's identity
id_token	ID tokens are used in token-based authentication to cache user profile information and provide it to a client application, thereby providing better performance and experience.
token_type	Default: Bearer A bearer token means that the bearer can access authorized resources without further identification.
expires_in	Default: 3600 seconds

Upload Data Set

Description

Use this endpoint to upload an input data set.

Endpoint

https://{{host}}:9803/api/v1/valet/upload

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset	Name of the input data set.
charset	Character encoding. Supported values are: UTF-8, UTF-16, or ISO-8859-1
hasHeader	Flag to indicate if the input data set has a header column. Supported values are: true or false
delimiter	Field delimiter. Supported values are: %2C (for comma) %7C (for pipe) %20 (for space) %09 (for tab) %3B (for semicolon)
quoteCharacter	Enclosing character if text within a field also includes the delimiter character. Supported values are: %22 (for double quote “) %60 (for grave accent `)
sourceType	Indicate whether the data source is considered internal or external to the organization. Supported values are: Internal or External
sourceName	Name of the data source.
appName	Name of the application that generated the data.
industry	Select an industry represented by the data. Supported values are: NAICS industry descriptions (see NAICS Industry Classification below)
entity	Name of the business entity the data represents (e.g., customer, partner, supplier, office).
pct	For large data sets, it is recommended to upload data in smaller chunks. Use this parameter to indicate the percentage of data loaded into TIBCO DQ. For example, if there are 10 chunks and you are uploading the second chunk, then set this value to 20.
lastChunk	Use this value to indicate the final chunk of the data. Set this value to false if the request body is not the last chunk of the data set. Set this value to true if the request body is the last chunk of the data set. Supported values are: false or true

NAICS Industry Classification

Agriculture, Forestry, Fishing and Hunting

Mining, Quarrying, and Oil and Gas Extraction

Utilities

Construction

Manufacturing

Wholesale Trade

Retail Trade

Transportation and Warehousing

Information

Finance and Insurance

Real Estate and Rental and Leasing

Professional, Scientific, and Technical Services

Management of Companies and Enterprises

Administrative and Support and Waste Management and Remediation Services

Educational Services

Health Care and Social Assistance

Arts, Entertainment, and Recreation

Accommodation and Food Services

Other Services (except Public Administration)

Public Administration

Request Body

Rows of input data with columns separated by a delimiter.

Response

status	CREATED when the data set is uploaded successfully (or OK when the request is not the last chunk).
code	201 when the data set is uploaded successfully (or 200 when the request is not the last chunk).
message	The ID of the data set to be used in subsequent requests.
developerMessage	UPLOAD_COMPLETE (or UPLOAD_STARTED when the request is not the last chunk).
responsetype	NA
response	NA
exception	NA

Profile Data

Description

Use this endpoint to request a data profile analysis on a previously uploaded data set.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/profileWithOptions

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

For each column that should be included in the data profile analysis:

id	Name of the column
businessImpact	A number that represents HIGH, MEDIUM, or LOW. Default values are: HIGH: 10, MEDIUM: 5, LOW: 1 Check with your administrator to find the values setup for your implementation.
allowNulls	Indicate whether you expect Null values in this column. Supported values are: true (nulls are expected) or false (nulls are not expected)
shouldBeUnique	Indicate whether you expect column values to be unique. Supported values are: true (values should be unique) or false (values can be non-unique)

Example:

[
    {
        "id": "first_name",
        "businessImpact": 10,
        "allowNull": false,
        "shouldBeUnique": true
    },
    {
        "id": "last_name",
        "businessImpact": 10,
        "allowNull": false,
        "shouldBeUnique": true
    },
]

Response

status	OK when the data is profiled successfully.
code	200 when the data is profiled successfully.
message	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the ID of the data set sent in the request parameter.
developerMessage	NA
responsetype	`com.tibco.tdq.common.model.profile.Profile`
response	The output data profile in JSON format. For more information, see Profiling Results JSON Schema.
exception	NA

Deduplicate

Description

Use this endpoint to deduplicate rows on a previously uploaded data set.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/deduplicate

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

Response

status	OK when data deduplication is successful.
code	200 when data deduplication is successful.
message	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the ID of the data set sent in the request parameter.
developerMessage	NA
responsetype	`com.tibco.tdq.common.model.profile.Deduplicate`
response	countRowsAfterDeduplication. Number of unique rows in the data set after duplicate rows are removed. countDuplicateRowsRemoved. Number of duplicate rows removed. pctDuplicateRowsRemoved. Percentage of duplicate rows removed.
exception	NA

Numeric Analysis

Description

Use this endpoint to run numeric analysis on columns that have numeric data.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/profile/numerics

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

An array of strings with column names enclosed in double-quotes. For example:

[
    "age",
    "billed",
    "paid"
]

Response

status	OK when the numeric data is profiled successfully.
code	200 when the numeric data is profiled successfully.
message	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the ID of the data set sent in the request parameter.
developerMessage	NA
responsetype	`com.tibco.tdq.common.model.profile.Deduplicate`
response	The new data profile in JSON format. For more information, see Profiling Results JSON Schema.
exception	NA

Correlation Analysis

Description

Use this endpoint to run correlation analysis on columns that have numeric, date, or categorical data.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/correlations

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

count

Specify the number of rows for correlation analysis.

Note: Max number of observations that can be uploaded for correlations is 500,000. Adjust the number of data attributes and the row count to reduce the total number of observations if it exceeds the max limit.

correlation

Specify the correlation method. You can specify more than one method by adding multiple correlation parameters (up to 3 max).

Supported values are: kendall, pearson, spearman

Request Body

An array of strings with column names enclosed in double-quotes. For example:

[
    "age",
    "spending_score",
    "billed"
]

Response

status	OK when the correlation analysis is successful.
code	200 when the correlation analysis is successful.
message	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the ID of the data set sent in the request parameter.
developerMessage	NA
responsetype	NA
response (An array of response values in JSON format - one for each correlation method you chose.)	method. Name of the correlation method. count. Number of rows analyzed. variables. List of columns analyzed. coefficients. An array of correlation coefficients in the order of columns specified in the request. svg. XML representing the correlation chart.
exception	NA

K-Means Clustering Analysis

Description

Use this endpoint to run K-Means clustering analysis on a pair of columns.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/clustering/kmeans

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)	A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.
clusters	Specify the number of clusters you expect in the data set (default is set to 3, min allowed is 1, and max allowed is 25).
count	Specify the number of rows for clustering analysis (max allowed is 4000).
sampling	Specify the sampling order (Top or Bottom). If your data set has more than 4000 rows, then this order determines the top or bottom 4000 rows sampled for analysis. Supported values are: head or tail

Request Body

An array of two column names enclosed in double-quotes, the first column represents x-axis and the second column represents y-axis.

[
    "age",
    "spending_score"
]

Response

status	OK when K-Means clustering analysis is successful.
code	200 when K-Means clustering analysis is successful.
message	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the ID of the data set sent in the request parameter.
developerMessage	NA
responsetype	NA
response (Response values in JSON format.)	method. Name of the method used for clustering analysis. count. Number of rows analyzed. variables. List of columns analyzed. svg. XML representing the clustering chart.
exception	NA

Download Profile

Description

Use this endpoint to download the profile for a previously analyzed data set.

Endpoint

https://{{host}}:9803/api/v1/valet/{{dataset-id}}/profile/export/

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

Response

The requested data set profile in JSON format. For more information, see Profiling Results JSON Schema.

Download Correlation Analysis Results

Description

Use this endpoint to download correlation results for a previously analyzed data set.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/{{artifact-correlations}}/export

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)	A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.
artifact-correlations	Supported values are: correlations

Request Body

Response

response

(An array of response values in JSON format, one for each correlation method you chose. For more information, see Correlation Analysis Results JSON Schema.)

method. Name of the correlation method.
count. Number of rows analyzed.
variables. List of columns analyzed.
coefficients. An array of correlation coefficients in the order of columns specified in the request.
svg. XML representing the correlation chart.

Download K-Means Clustering Results

Description

Use this endpoint to download K-Means clustering analysis results for a previously analyzed data set.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/{{artifact-kmeans}}/export

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)	A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.
artifact-kmeans (path)	Supported values are: kmeans

Request Body

Response

response

(Response values in JSON format. For more information, see K-Means Cluster Analysis Results JSON Schema.)

method. Name of the method used for clustering analysis.
count. Number of rows analyzed.
variables. List of columns analyzed.
svg. XML representing the clustering chart.

Get List of Rules

Description

Use this endpoint to download a list of Rules available in that instance of TIBCO DQ.

Endpoint

https://{{host}}:9803/api/v1/rules

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

status

Supported values are: ACTIVE or INACTIVE

Request Body

Response

status	OK when retrieving the list of rules is successful.
code	200 when retrieving the list of rules is successful.
message	NA
developerMessage	NA
responsetype	`com.tibco.tdq.common.model.rules.Rule`
response (An array of values in JSON format, one per rule.)	Refer to the Rule JSON schema.
exception	NA

Match Rules

Description

Use this endpoint to find Rules that match the input data attributes in a previously generated data profile.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/profilematch/all

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

Response

status	OK when retrieving the list of matching rules is successful.
code	200 when retrieving the list of matching rules is successful.
message	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the id of the data set sent in the request parameter.
developerMessage	NA
responsetype	`java.util.LinkedHashMap$LinkedValues`
response (An array of values in JSON format, one per input data attribute in the data set.)	name. Name of the input data attribute. type. Data type of the input data attribute. suggestedRule. Null if no Rules matched the data attribute, or: ruleName. Name of the rule matched with the data attribute. inputMap. Mapping of input data attribute with Rule input. ruleId. Unique identifier for the matched Rule.
exception	NA

DQ Analysis With Rules

Description

Use this endpoint to submit a request with Rules to run a Data Quality (DQ) analysis against a previously uploaded data set.

Endpoint

https://{{host}}:9803/api/v1/{{dataset-id}}/butler

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

For each Rule that should be executed in the data quality analysis:

ruleName	Name of the Rule.
groupName	This is only applicable to Rules that require multiple input values. Specify a unique name for a group of data attributes that are mapped to Rule inputs (see the example below).
inputMap	Specify input data attributes that map with the Rule inputs.
ruleId	Unique identifier for the Rule.

Example:

{"matches" : [ {
    "ruleName" : "compare_pair_int_values_eq",
    "groupName" : "bill_vs_paid",
    "inputMap" : {
      "in_value_a" : "billed",
      "in_value_b" : "paid"
    },
    "ruleId" : "compare_pair_int_values_eq"
  }, {
    "ruleName" : "compare_pair_int_values_eq",
    "groupName" : "bill_vs_quote",
    "inputMap" : {
      "in_value_a" : "billed",
      "in_value_b" : "quote"
    },
    "ruleId" : "compare_pair_int_values_eq"
  }, {
    "ruleName" : "cleanse_usa_phone",
    "inputMap" : {
      "in_phone" : "phone1"
    },
    "ruleId" : "cleanse_usa_phone"
  }, {
    "ruleName" : "cleanse_email",
    "inputMap" : {
      "in_email" : "email"
    },
    "ruleId" : "cleanse_email"
  } ]}

Response

status	OK when Rules execution is successful.
code	200 when Rules execution is successful.
message	This value is a unique identifier for the Analyze job that was executed. Users can submit multiple combinations of Rules for a given data set, each job will be associated with its unique Analyze Job ID.
developerMessage	This value is the same as the unique identifier for the data set, message value received in the response JSON should match the ID of the data set sent in the request parameter.
responsetype	com.tibco.tdq.common.model.butler.CleansingResults
response	For more information, see DQ Analysis Summary Results JSON Schema.
exception	NA

Download All Results

Description

Use this endpoint to download analysis results for a data set.

Endpoint

https://{{host}}:9803/api/v1/valet/analyze/{{analysis-id}}/export

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

analysis-id (path)

This is the unique identifier for the previous analysis job. This ID should have the same value as the message value received in the response JSON from the DQ Analysis With Rulesstep.

Request Body

Response

A .zip file that contains the following folders:

input. Contains the input data set.
profile. Contains data profiling results.
results. Contains DQ analysis results.

For more information, see Viewing Results.

Download Results Summary

Description

Use this endpoint to download analysis results for a data set.

Endpoint

https://{{host}}:9803/api/v1/valet/analyze/{{analysis-id}}/summary/export

HTTP Method

GET

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

analysis-id (path)

This is the unique identifier for the previous analysis job. This ID should have the same value as the message value received in the response JSON from the DQ Analysis With Rulesstep.

Request Body

Response

The requested data quality analysis results in JSON format. For more information, see DQ Analysis Summary Results JSON Schema.

Delete Analysis Results

Description

Use this endpoint to delete the results of a previous DQ analysis job.

Endpoint

https://{{host}}:9803/api/v1/valet/analyze/{{analysis-id}}

HTTP Method

DELETE

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

analysis-id (path)

This is the unique identifier for the previous analysis job. This ID should have the same value as the message value received in the response JSON from the DQ Analysis With Rulesstep.

Request Body

Response

status	OK when deletion is successful.
code	200 when deletion is successful.
message	NA
developerMessage	NA
responsetype	`java.lang.Boolean`
response	"true" when deletion is successful.
exception	NA

Delete Entire Dataset

Description

Use this endpoint to delete a previously uploaded data set along with all the analysis results.

Endpoint

https://{{host}}:9803/api/v1/valet/{{dataset-id}}

HTTP Method

DELETE

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

dataset-id (path)

A unique identifier for the data set, this ID should have the same value as the message value received in the response JSON in the Upload Data Set step.

Request Body

Response

status	OK when deletion is successful.
code	200 when deletion is successful.
message	NA
developerMessage	NA
responsetype	`java.lang.Boolean`
response	"true" when deletion is successful.
exception	NA

Transactional Requests

Description

Use this endpoint to submit CSV or JSON data in the request body and run an analysis with a single Rule, without uploading an entire data set. Results from these transactional requests are not scored. Results are summarized and stored in the watchdog_dqstats_trans_dtl view.

Endpoint

https://{{host}}:9803/api/v1/cleanseRecords

HTTP Method

POST

Authorization

Bearer Token

The access_token received in the authorization response.

Parameters

ruleId

Unique identifier for the rule that you want to execute.

Request Body

For CSV input, rows of comma-separated values that correspond with the Rule input columns.
For JSON input, array of name-value pairs that correspond with the Rule input columns.

Response

status	OK when execution is successful.
code	200 when execution is successful.
message	NA
developerMessage	NA
responsetype	`java.lang.String`
response	For CSV input, response body contains rows of comma-separated values that correspond with Rule output values. For JSON input, response contains an array of name-value pairs that correspond to the Rule output columns.
exception	NA
