complexType XmlCalendarSummary

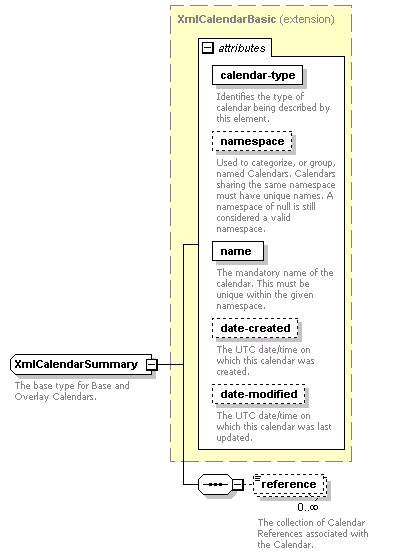

diagram
namespace	http://basic.api.dac.n2.tibco.com
type	extension of XmlCalendarBasic
properties	base  XmlCalendarBasic abstract  false
children	reference
used by	element  listCalendarsResponse/calendar complexType  XmlWorkCalendar
attributes	Name   Type   Use   Default   Fixed   Annotation calendar-type   XmlCalendarType   required         documentation Identifies the type of calendar being described by this element. namespace   xs:string   optional         documentation Used to categorize, or group, named Calendars. Calendars sharing the same namespace must have unique names. A namespace of null is still considered a valid namespace. name   xs:string   required         documentation The mandatory name of the calendar. This must be unique within the given namespace. date-created   xs:dateTime   optional         documentation The UTC date/time on which this calendar was created. date-modified   xs:dateTime   optional         documentation The UTC date/time on which this calendar was last updated.
annotation	documentation The base type for Base and Overlay Calendars.
source	<xs:complexType name="XmlCalendarSummary" abstract="false">   <xs:annotation>     <xs:documentation>The base type for Base and Overlay Calendars.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="XmlCalendarBasic">       <xs:sequence>         <xs:element name="reference" type="xs:string" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>The collection of Calendar References associated with the Calendar.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element XmlCalendarSummary/reference

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation The collection of Calendar References associated with the Calendar.
source	<xs:element name="reference" type="xs:string" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>The collection of Calendar References associated with the Calendar.</xs:documentation>   </xs:annotation> </xs:element>
