complexType XmlWorkCalendar

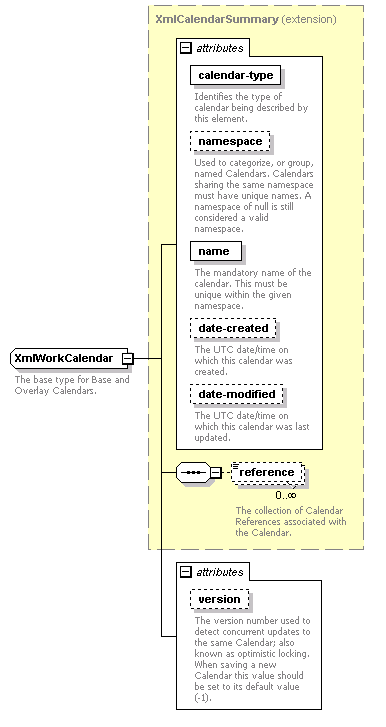

diagram
namespace	http://basic.api.dac.n2.tibco.com
type	extension of XmlCalendarSummary
properties	base  XmlCalendarSummary abstract  true
children	reference
used by	complexTypes  XmlBaseCalendar XmlOverlayCalendar
attributes	Name   Type   Use   Default   Fixed   Annotation calendar-type   XmlCalendarType   required         documentation Identifies the type of calendar being described by this element. namespace   xs:string   optional         documentation Used to categorize, or group, named Calendars. Calendars sharing the same namespace must have unique names. A namespace of null is still considered a valid namespace. name   xs:string   required         documentation The mandatory name of the calendar. This must be unique within the given namespace. date-created   xs:dateTime   optional         documentation The UTC date/time on which this calendar was created. date-modified   xs:dateTime   optional         documentation The UTC date/time on which this calendar was last updated. version   XmlLockVersion      -1      documentation The version number used to detect concurrent updates to the same Calendar; also known as optimistic locking. When saving a new Calendar this value should be set to its default value (-1).
annotation	documentation The base type for Base and Overlay Calendars.
source	<xs:complexType name="XmlWorkCalendar" abstract="true">   <xs:annotation>     <xs:documentation>The base type for Base and Overlay Calendars.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="XmlCalendarSummary">       <xs:attribute name="version" type="XmlLockVersion" default="-1">         <xs:annotation>           <xs:documentation>The version number used to detect concurrent updates to the same Calendar; also known as optimistic locking. When saving a new Calendar this value should be set to its default value (-1).</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute XmlWorkCalendar/@version

type	XmlLockVersion
properties	default  -1
annotation	documentation The version number used to detect concurrent updates to the same Calendar; also known as optimistic locking. When saving a new Calendar this value should be set to its default value (-1).
source	<xs:attribute name="version" type="XmlLockVersion" default="-1">   <xs:annotation>     <xs:documentation>The version number used to detect concurrent updates to the same Calendar; also known as optimistic locking. When saving a new Calendar this value should be set to its default value (-1).</xs:documentation>   </xs:annotation> </xs:attribute>
