TIBCO BusinessEvents® Extreme supports JMX access to all administrative commands. It also supports JMX notifications for all log events.

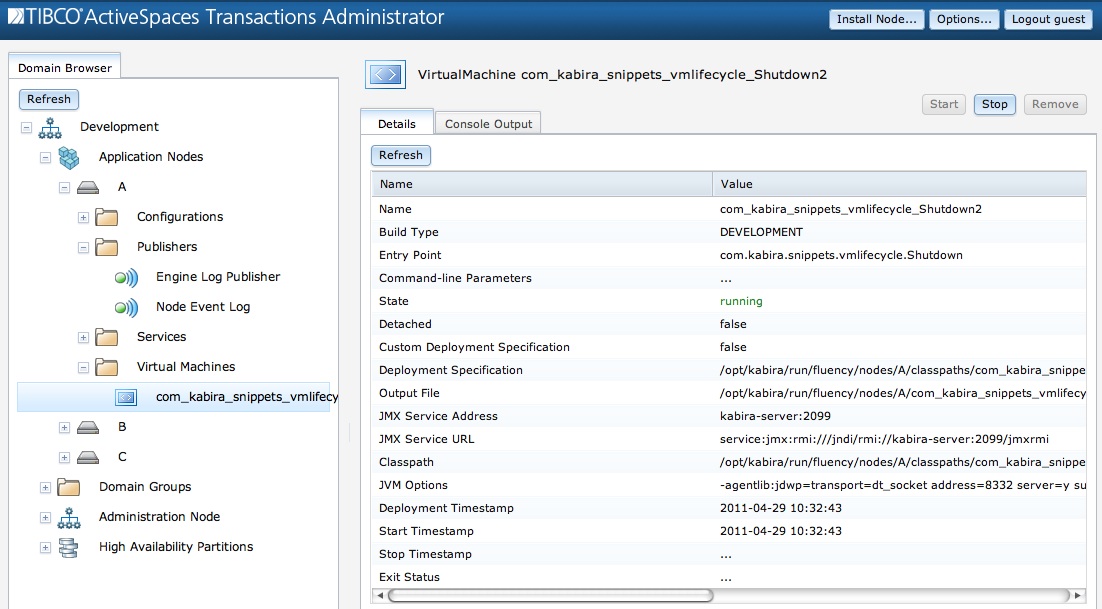

When a JVM is started in TIBCO BusinessEvents® Extreme a JMX server is automatically started. The address of the JMX server can be found in the JVM details screen in the JMX Service Address and JMX Service URL fields. See Figure 1.12, “JMX address”.

Figure 1.12. JMX address

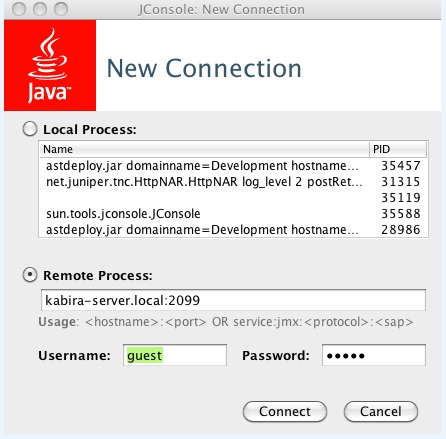

Valid TIBCO BusinessEvents® Extreme node credentials must be specified in the JMX console login panel to access the TIBCO BusinessEvents® Extreme JVM. The user name and password specified must already be defined for the node.

Figure 1.13. JMX console log in

TIBCO BusinessEvents® Extreme exposes MBeans for:

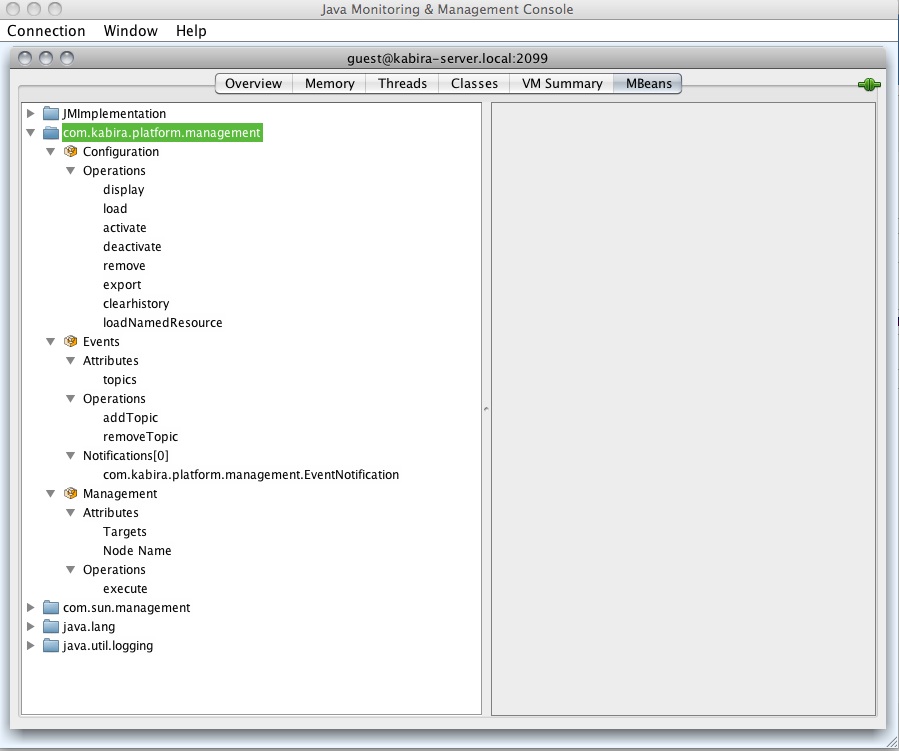

All of the TIBCO BusinessEvents® Extreme Mbeans can be found in the com.kabira.platform.management name space.

Figure 1.14. TIBCO BusinessEvents® Extreme MBeans

Configuration MBean

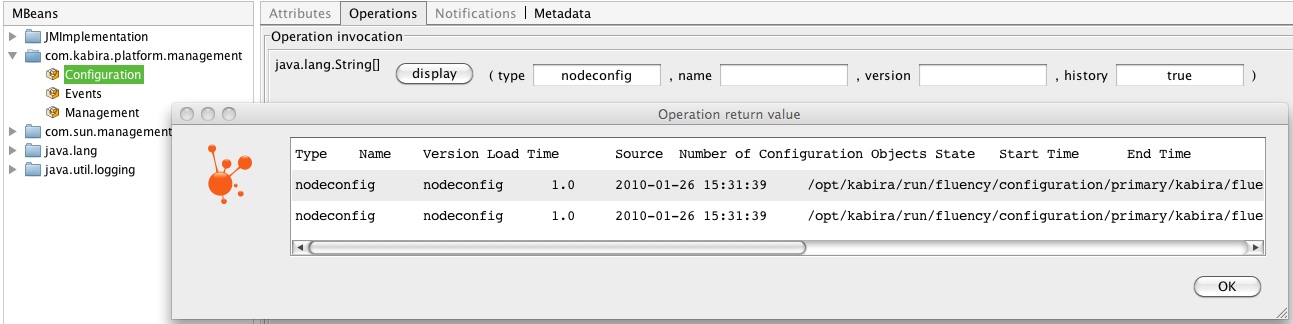

The JMX configuration MBean supports execution of all TIBCO BusinessEvents® Extreme configuration commands. Figure 1.15, “Configuration MBean” shows an example of displaying node configuration loaded into a TIBCO BusinessEvents® Extreme node.

Figure 1.15. Configuration MBean

Event MBean

The JMX event MBean supports:

• dynamically adding and removing topics for which the MBean will receive events

• receiving event notifications

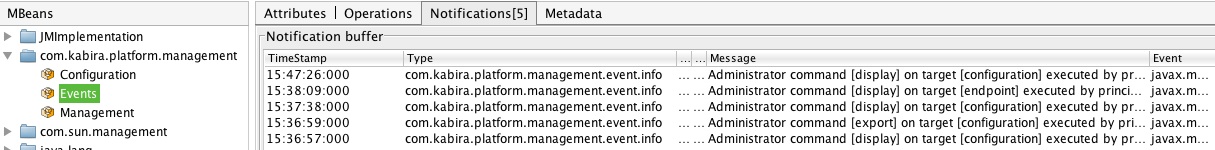

Figure 1.16, “Events MBean” shows event notifications being displayed.

Figure 1.16. Events MBean

Management MBean

The JMX management MBean supports execution of any TIBCO BusinessEvents® Extreme or application defined management command. Figure 1.17, “Management MBean” shows an example of displaying all JVMs running on a TIBCO BusinessEvents® Extreme node.

Figure 1.17. Management MBean
