Running the CustomCP Project

You can run the CustomCP project to see how to use the custom Concurrent Program INCOIN to call JDBC to insert data into interface tables and to submit a Concurrent Program request.

1. In the Project Explorer view, expand the CustomCP project.
2. Configure the Oracle E-Business Suite connection:
   1. Expand Resources > customcp.
   2. Double-click OEBSConnectionResource.oebsconnectionResource.
   3. In the OEBS Connection editor, edit the resource connection, and then click Test Connection to validate your connection.

   See Oracle E-Business Suite Connection for more details about how to configure the connection.

3. Open the process:
   1. Expand Processes > customcp.
   2. Double-click INCOIN_import_item.bwp.
4. Execute the generated SQL script:
   1. Click Generate SQL Script in the General tab to generate the SQL scripts.
      See Custom Concurrent Program General Tab for more details.
   2. Execute the SQL script on the command line to grant insertion privileges to the plug-in user for the interface table.
5. Execute the following SQL script to find the Concurrent Program parameters:

   SELECT
   cp.concurrent_program_name CP_Name,  -- The Concurrent Program name
   dfcu.end_user_column_name Column_name, -- The real argument name
   lv.meaning data_type, -- The data type of argument
   ffv.maximum_size, -- The length of the argument
   dfcu.required_flag, -- The argument required or not
   dfcu.display_flag, -- The argument displayed or not on Oracle Form
   dfcu.default_value, -- The default value of the argument
   dfcu.column_seq_num -- The argument sequence number
   FROM fnd_concurrent_programs_vl cp
     LEFT OUTER JOIN fnd_descr_flex_col_usage_vl dfcu
   ON dfcu.descriptive_flexfield_name
       ='$SRS$.'||cp.concurrent_program_name
     LEFT OUTER JOIN fnd_flex_value_sets ffv
   ON ffv.flex_value_set_id = dfcu.flex_value_set_id
     LEFT OUTER JOIN fnd_lookup_values_vl lv
   ON lv.lookup_code = ffv.format_type
   AND lv.lookup_type = 				'FIELD_TYPE'
   AND lv.enabled_flag = 'Y'
   AND lv.security_group_id = 0
   AND lv.view_application_id = 0
   WHERE cp.CONCURRENT_PROGRAM_NAME LIKE UPPER('&CONC_PROG_NAME' || '%')
   ORDER BY cp.concurrent_program_name, dfcu.column_seq_num;


   You can execute the SQL script in one of the following ways:

   • Execute the SQL script on the command line under the apps user.

     If you fail to find any data by using this method, you must add the following SQL statements in front of the SQL script, and then run them together.

     ALTER SESSION SET
     NLS_LANGUAGE='AMERICAN';


   • Execute the SQL script with Oracle SQL Developer.

     If you fail to find any data by using this method, you must run the following SQL statements, and then run the SQL script.

     ALTER SESSION SET
     NLS_LANGUAGE='AMERICAN';


   The following table shows the results of the INCOIN Concurrent Program parameters:

   No	CP_NAME	ARGUMENT	COLUMN_NAME	DATA_TYPE	MAXIMUM_SIZE
   1	INCOIN	argument1	p_org_id	Number	15
   2	INCOIN	argument2	p_all_org	Char	80
   3	INCOIN	argument3	p_val_item_flag	Char	80
   4	INCOIN	argument4	p_pro_item_flag	Char	80
   5	INCOIN	argument5	p_del_rec_flag	Char	80
   6	INCOIN	argument6	p_xset_id	Number	15
   7	INCOIN	argument7	p_run_mode	Char	1

6. Save the project.
7. From the menu, Click Run > Debug Configurations, or click Debug > Debug Configurations.
8. Click BusinessWorks Application > BWApplication in the left panel in the Debug Configurations window.
   By default, all applications in the current workspace are selected in the Applications tab.
9. Click Deselect All in the Applications tab, and select the check box next to the project you want to run.
10. Click Debug to run the process.
11. Click the Terminate icon in the Console view to stop the running process.
    You can check the value of STATUS in the Output tab in the Job Data view to see whether the process runs successfully. "Normal" stands for success, and "Error" stands for error.
12. Request result in Oracle E-Business Suite:
    1. Log in to the Oracle E-Business Suite system with the user name MFG and password welcome.
    2. Select Manufacturing and Distribution Manager > Inventory > Requests to open the Find Requests dialog.



    3. Click Find to view the search results.
       The following figure shows the search results:



    4. Select Inventory > Items > Master Items.

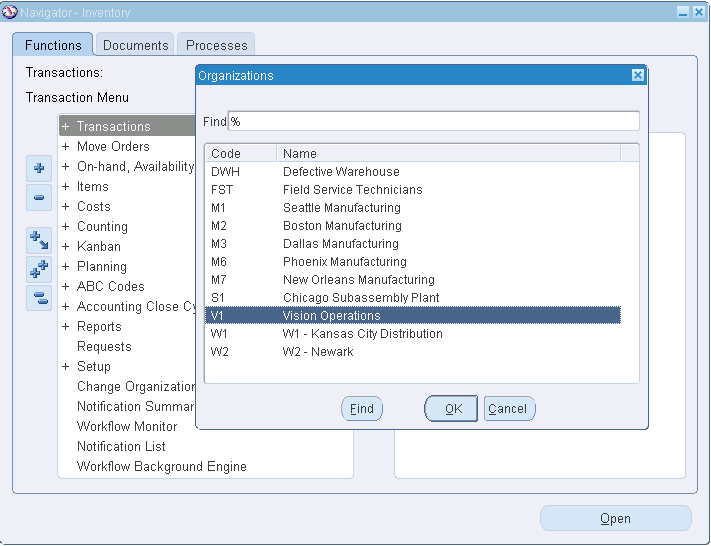

    5. In the Organizations dialog, select the V1 organization that is defined in the input, and then click OK.

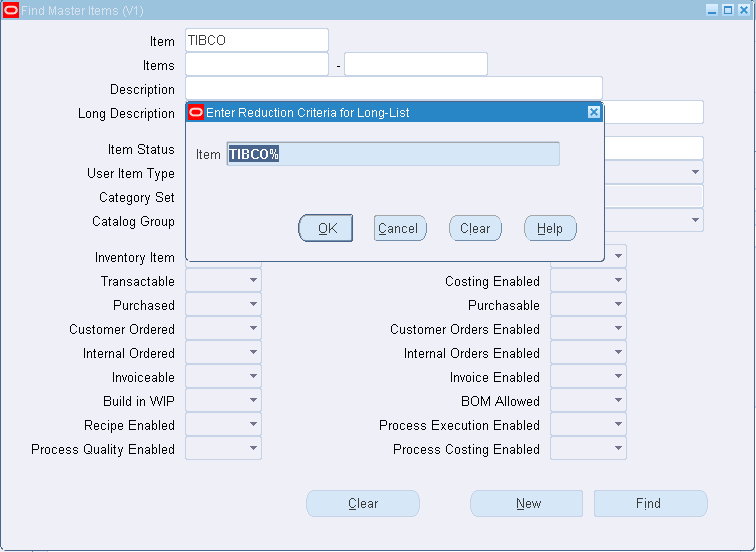

    6. In the Item field in the Find Master Items (V1) dialog, enter TIBCO%, and click Find.



    7. In the Enter Reduction Criteria for Long-List dialog, click OK to view the search details.

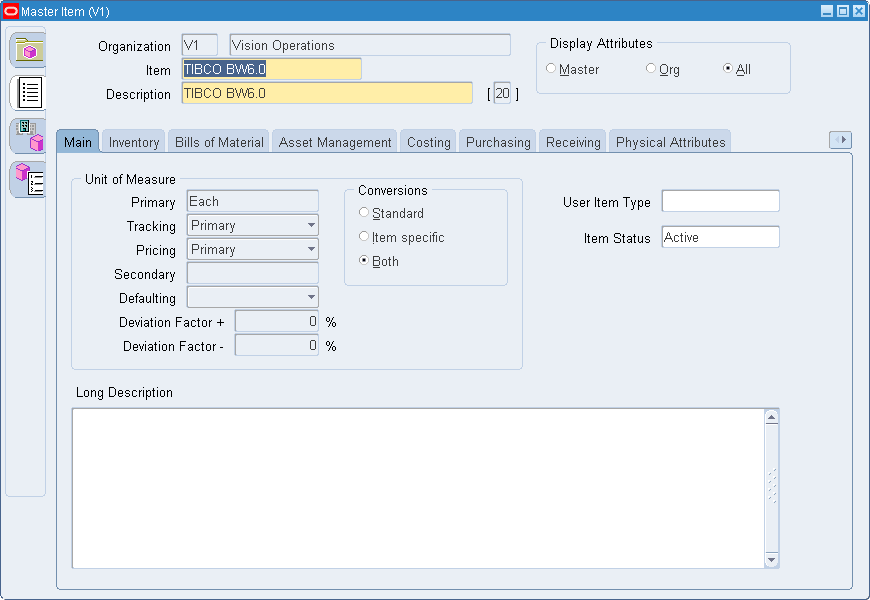

       The following figure shows the master item details:
