Subscribing to a Microagent Method

Subscribe to a microagent method to view its results over time. Creating a subscription is useful when you want to test a range of return values before specifying boundaries in a rule or to identify general patterns of activity.

Prerequisites

Ensure that the return type is defined for the microagent method that you want to subscribe to.

Note	You cannot subscribe to microagent methods that do not have a return type.

For more information on the microagent methods, either view the microagent method details on the Microagents tab or see TIBCO Hawk Microagent Reference Guide.

Procedure

1.

In the Hawk Console, open the Hawk Agent page for which you want to subscribe to a microagent method. For steps, see Viewing the Agent Details.

2.

In the Agent page, select the Microagents tab.

All the microagents for the Hawk agent are displayed in the tab. For details, see Microagents Tab.

3.

Select the microagent whose method you want to invoke.

The right panel displays the microagent details and all its methods.

4.

Under the Actions column, click the Subscribe icon to start a subscription of the microagent method.

The Subscribe window is displayed with all the required parameters for the microagent method.

5.

In the Subscribe window, enter the details of the fields, select the subscription interval, and click Start Subscription. The fields displayed on the window vary depending on the arguments required for the subscribed method. For reference information on all the microagent methods, either view the microagent method details on the Microagents tab or see TIBCO Hawk Microagent Reference Guide.

The result of the method is displayed on the window with a new line added after each subscription interval. If required, you can also select the Update same line option to display every result after updating the same line.

6.

Click Minimize icon to minimize the Subscription window while the results are published in the background.

After minimizing, the Subscribe icon for the method is changed to a gear icon. Click the gear icon to restore the Subscription window.

7.

In the Subscription window, click Stop Subscription to stop receiving the subscription results. After stopping the subscription, click the Close icon to close the subscription window.

Example

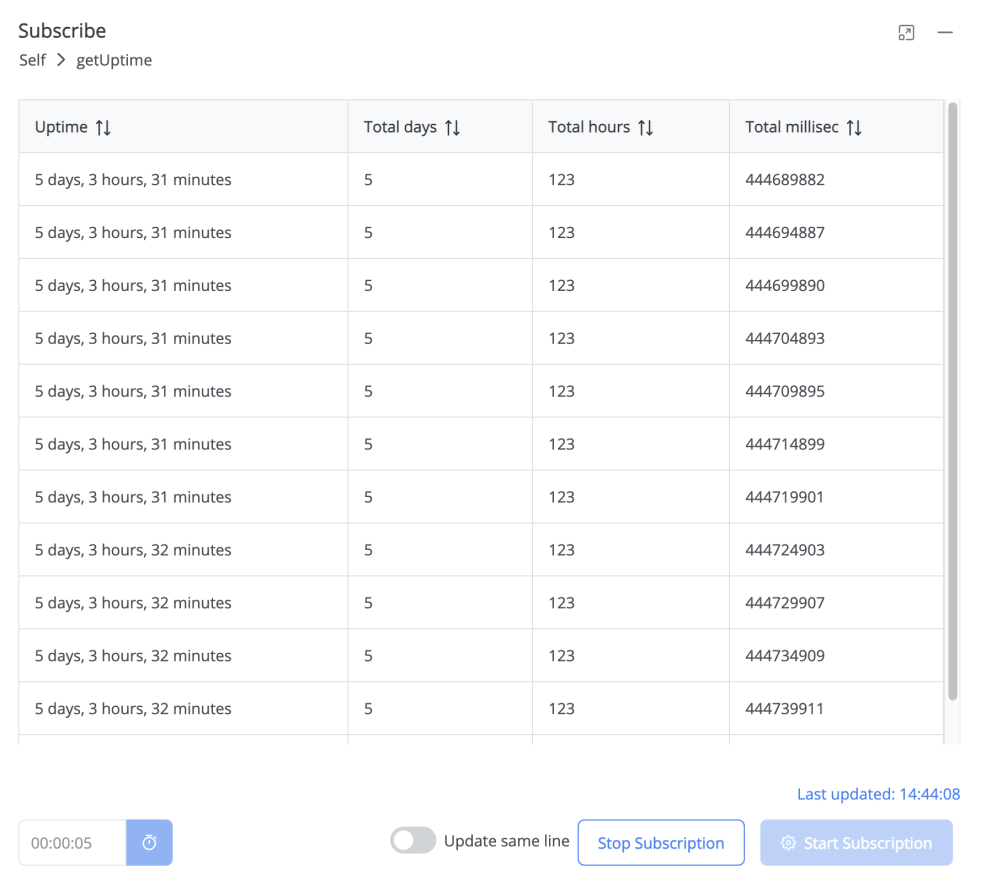

For example, the following figure shows the sample subscription result for the getUptime method of the Self microagent with the subscription interval set to 5 seconds.

Figure 30: Sample Result for Subscription of getUptime Method
