Rolling up statement links

 Top  Previous  Next

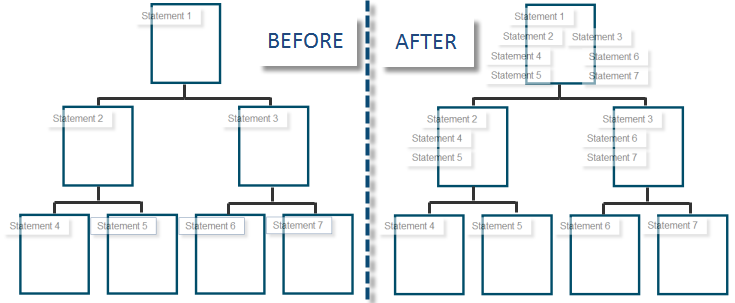

Activity statement links can be automatically rolled up and copied to all parent activities from child activities.



Note: This operation cannot be undone once completed.















1.From the Tools menu choose Statement Links, then Rollup Statement Links.



2.Select one of the following options:



•Rollup to the current diagram

This will copy all statement links from child activities to all parent activities up to the diagram that you are currently viewing.



•Rollup to the level 1 diagram

This will copy all statement links from child activities to all parent activities up to the level 1 diagram.



3.Click OK.





Running the process from the command line

The process can be run from the command line through the use of a Control Script File (.csf). Note: This method will always roll up statements to the level 1 diagram. Any issues will be reported in a log file, which is created in the same location as the CSF file.



Example



C:\TIBCO Nimbus\Client\Ctrl.exe "E:\TIBCO Nimbus\Process Repository" "C:\StatementRollup.csf"



What is a Control Script File?



This file defines the parameters to automate a task using TIBCO Nimbus® . To create a CSF, you must create a new text file and change the file extension to .csf, for example StatementRollup.csf.



Then include the following line in the file:



ROLLUP_STMT_LINKS "<relative map path>"



For example:



ROLLUP_STMT_LINKS "C:\TIBCO Nimbus\Process Repository\MY PROCESSES.MAP"
