Import Overview

Data may be imported into Petrel via OpenSpirit by several mechanisms:

Data imported from external data store

• Data may be imported using the Load feature in a Studio Find search result. See the Studio Find Search section of this guide for information about loading data using Studio Find search results.
• Data may be imported in reaction to a received data selection event A message passed between applications, via OpenSpirit, that contains datakeys that refer to data in data stores accesible via an OpenSpirit data connector.. This may be initiated from the OpenSpirit Data Selector, OpenSpirit ArcGIS Extension, OpenSpirit viewers, or other third party OpenSpirit enabled applications.

• Data may be imported in reaction to a drag and drop event (containing a data selection event A message passed between applications, via OpenSpirit, that contains datakeys that refer to data in data stores accesible via an OpenSpirit data connector.).  This may be initiated from the  OpenSpirit Data Selector or other third party OpenSpirit enabled applications.
• Data that is imported is placed in an appropriate spot in the Petrel input tree.  For the following data types you can control which folder imported data will be inserted into by selecting the target folder (highlight the folder before sending a data selection event):
• • wells into selected well sub folder
  • well tops into selected well tops folder
  • well logs into selected global log template sub-folder
  • stratigraphic column into a stratigraphic chart folder or into a well tops folder
  • 2d/3d survey into selected seismic or survey folder
  • 2d seismic datasets into selected 2d survey sub-folder
  • 3d seismic datasets into selected 3d survey sub-folder
  • 3d seismic interpretation grid into selected interpretation folder
  • 2d seismic interpretation into selected interpretation folder
  • faults into selected interpretation folder
  • non-seismic grids, horizon/fault points, and horizon fault boundaries into selected generic folder
  • Imported data can optionally be grouped into sub folders based on a “group by” attribute. Grouping is controlled using the Groupings tab in the OpenSpirit Settings dialog.

OpenSpirit Data Selector  Tab Name	Screen shot from Petrel Input Tree	Petrel Object Type Created	Comments
Well group
Well		Well	When a wellbore selection is received a Petrel well is created and if the source wellbore has a preferred checkshot this is also imported and set as the active checkshot on the Petrel well (and a General time log created). Wellbores that are missing a well reference datum (e.g. a KB elevation) are not imported (unless you have selected the option to assume 0.0 for the datum) and wellbores missing an azimuth north reference are also skipped (unless you have set a default north reference in the OpenSpirit settings dialog). Skipped data is noted in the log file.   A new survey is created and made the definitive survey for imports that are an overwrite of a matching borehole. Existing surveys are not updated.
Pick		Well Tops	Well picks are imported one of two ways based on the Skip well pick if associated horizon is not in strat column setting and the existence of matching horizon names in the well tops stratigraphy folder.   Well picks are imported as follows if the Skip well pick if associated horizon is not in strat column setting is not enabled.   A new top level well tops folder named "Well Tops 1" is created in the Petrel Input tree if there is not already a well tops folder in the input tree. A new horizon and zone entry is made in the stratigraphy folder for every unique well pick name. Well picks that have an associated horizon are ordered by the geologic age of their associated horizon.
			Well picks are imported as follows if the Skip well pick if associated horizon is not in strat column setting is enabled and the selected well tops folder contains horizons in its stratigraphy folder.   Well picks that have an associated horizon that matches the name of a horizon in the well tops stratigraphy folder are imported into the well tops folder. Well picks that do not have an associated horizon that matches the name of a horizon in the well tops stratigraphy folder are not imported. No modifications are made to the horizons and zones in the well tops folder.   Consider importing the strat column that defines the stratigraphy of the picks that you want to import prior to importing the picks. The strat column can be imported as a well tops folder which can then be used as the selected well tops folder when importing picks.
Log		Well Log	The OpenSpirit log kind is used to find the corresponding Petrel log template and an entry made in the Global logs section. If multiple versions of the same log kind are added to the same well, a number is appended to the log kind name to distinguish them.  Duplicate measured depth values will be discarded unless you have selected the option to allow the import of duplicates.
Checkshot		Checkshot	The preferred checkshot is automatically imported when a well is created via OpenSpirit. You may also send additional checkshots. A user must then select which to use as the active checkshot. If the checkshot datum differs from the Petrel SRD A seismic reference datum (SRD) is the elevation (with respect to MSL) at which the seismic travel time equals zero. then you are prompted to either supply a replacement velocity (to be used to shift the checkshot times) or to skip importing the checkshot.
Strat Column		Strat Column	Strat columns are imported in one of two ways based on the Create stratigraphic column in setting.   Strat columns are imported as follows if the Create stratigraphic column in setting is set to Well Tops Folder.   A new top level well tops folder is created in the Petrel Input tree for each strat column that is being imported. Each top level well tops folder is given the name of the strat column it will contain. A hierarchical stratigraphy is created under the well tops folder to represent the strat column. A hierarchy of top, zone, and base horizon is created for all strat units defined in the strat column.
			Strat columns are imported as follows if the Create stratigraphic column in setting is set to Stratigraphic Chart Folder.   A new top level stratigraphic chart folder named OpenSpirit is created if one does not already exist in the Petrel input tree. A stratigraphic chart folder is then created under the OpenSpirit folder for each stratigraphic column that is imported. Petrel stratigraphic columns are created for each level of strat unit contained in the strat column. Stratigraphic events are created for the top and base horizon of each strat unit.
Seismic group
3D Survey		Survey	If a 3d survey event is received a Survey Folder is created and a dummy 3d seismic volume placed in it (called "(placeholder)" - this is required because a 3d survey may not be created in Petrel without an associated seismic volume).   A Survey folder is automatically created, if needed, when a 3d volume is received.
3D Volume		3D seismic	A "dummy" unlabeled cube is made and a virtual attribute cube is placed under it which is a live-link A 3D seismic virtual attribute cube created when importing a 3D seismic volume using OpenSpirit. A live-link does not contain seismic data, it points to seismic data that resides in the database it was selected from (e.g. OpenWorks, GeoFrame, etc.). Seismic data is dynamically read from the source database when a Petrel window or process requests data from the live-link. Live-links can be converted into a normal 3D seismic object by realizing the live-link. to the remote seismic volume. A zgy file may then be created by realizing the volume or a subset of it.  If a seismic time volume's datum differs from the Petrel SRD A seismic reference datum (SRD) is the elevation (with respect to MSL) at which the seismic travel time equals zero. then you are prompted to either supply a replacement velocity (to be used to shift the start time) or to skip importing the volume.   Live links can be realized in a background task using the Live-link Manager.
2D Survey		Survey	If a 2d survey event is received a Survey Folder is created.   A Survey folder is also automatically created, if needed, when a 2D line or 2D Dataset is received.
2D Navigation		2d seismic	If a 2d line event is received a 2d Line Folder is created (if needed)  and a dummy 2d seismic  line placed in it (called "(placeholder)" - this is required because a 2d line may not be created in Petrel without an associated seismic dataset).   A Line folder is also created, if needed, when a  2d dataset is received.  By default, the data is saved into SEGY format, unless you select the option to save into Petrel’s RAW format.
2D Dataset		2d seismic	If a seismic time dataset's datum differs from the Petrel SRD A seismic reference datum (SRD) is the elevation (with respect to MSL) at which the seismic travel time equals zero. then you are prompted to either supply a replacement velocity (to be used to shift the start time) or to skip importing the dataset.
3D Seismic Horizon group
3D Horizon		3D Interpretation grid	If a horizon selection from a 3d survey is received  then a 3d interpretation grid is made and placed under the corresponding Petrel seismic horizon name (which is created if it doesn't already exist). The 3d interpretation grid is named after its 3d survey. Only the elevation property is initially brought in (either time or depth based on the horizon's domain) .   If a seismic time horizon's datum differs from the Petrel SRD A seismic reference datum (SRD) is the elevation (with respect to MSL) at which the seismic travel time equals zero. then you are prompted to either supply a replacement velocity (to be used to shift the times) or to skip importing the horizon.
Horizon Properties		Continuous attribute	When a horizon property event is received and there is no corresponding 3D interpretation grid already in Petrel then the 3d interpretation grid will automatically be created so that the property may be attached to it.   If the horizon's domain is time, Z will be set to 0.  If domain is depth, Z will be set to Petrel project SRD A seismic reference datum (SRD) is the elevation (with respect to MSL) at which the seismic travel time equals zero..
Horizon Fault Boundaries		Lines/polygons
2D Seismic Horizon group
2D Horizon		2D Interpretation	When a horizon selection from a 2d seismic interpretation is received  a 2d interpretation is made and placed under the corresponding Petrel seismic horizon name (which is created if it doesn't already exist). The 2d interpretation is named after its 2d survey.    If a seismic time horizon's datum differs from the Petrel SRD A seismic reference datum (SRD) is the elevation (with respect to MSL) at which the seismic travel time equals zero. then you are prompted to either supply a replacement velocity (to be used to shift the times) or to skip importing the horizon.
Non-seismic Horizon group
Grid		Surface	When a non-seismic horizon selection is received  a Petrel surface will be created.   If the grid is not rectangular (in the Petrel project CRS A Coordinate Reference System. In Petrel, a project has a CRS which is a map projection system with a reference geographic system which has an associated datum. In addition, a preferred datum shift to WGS84 is defined.) it will not be imported
Point Set		Points	Received horizon PointSets are placed in a folder named  "Surfaces -Time" or "Surfaces-Depth" - based on domain.
Point Set Properties		Points	Received horizon PointSetProperties are placed in a folder named  "Surfaces -Time" or "Surfaces-Depth" - based on domain. The properties are placed under the PointSet that they are associated with.
Fault group
Fault (type= PolylineSet)		Fault interpretation
Fault (type= PointSet)		Points	Received fault PointSets are placed in a folder named  "Faults -Time" or "Faults-Depth" - based on domain.
Fault (type= PointSetProperty)		Points	Received fault PointSetProperties are placed in a folder named  "Faults -Time" or "Faults-Depth" - based on domain. The properties are placed under the PointSet that they are associated with.
Culture group
Point Feature		Points	Creates a feature whose name comes from the feature column that is called "name" or has "name" in it. If no such column exists the featureid is used as the Petrel object name.  Automatically imports all associated Point Feature attributes with Point features
Polyline Feature		Lines/polygons	Creates a feature whose name comes from the feature column that is called "name" or has "name" in it. If no such column exists the featureid is used as the Petrel object name.  Automatically imports all associated Polyline Feature attributes with Polyline features
Polygon Feature		Lines/polygons	Creates a feature whose name comes from the feature column that is called "name" or has "name" in it. If no such column exists the featureid is used as the Petrel object name.  Automatically imports all associated Polygon Feature attributes with Polygon features

In either case the OpenSpirit Adapter will use the received datakeys Links that connect a Petrel object (e.g. a well, seismic volume, or horizon) to a data item in an external data store. Given a datakey OpenSpirit can read or write any updates to/from Petrel. to query for data from the referenced data stores and then compare to data already in the Petrel project.  If matching data exists in the project you will have a chance to indicate whether you wish to skip importing the matching data item, update it, or add a duplicate item. This import behavior is controlled in the import dialog.  The attributes used to determine a match are set in the configuration file.

Data imported from another application using GIS events

Data may be imported in reaction to a received GIS or Grid event A message passed between applications, via OpenSpirit, that contains the grid defintion, grid values, CRS and z units of a grid representing the elevation of a geologic surface or some other attribute defined on a grid. A Petrel surface may be sent as a grid event.. This may be initiated from the OpenSpirit ArcGIS Extension or other third party OpenSpirit enabled applications. See the GIS Integration section of this guide for more information about importing data via GIS events.

OpenSpirit Properties

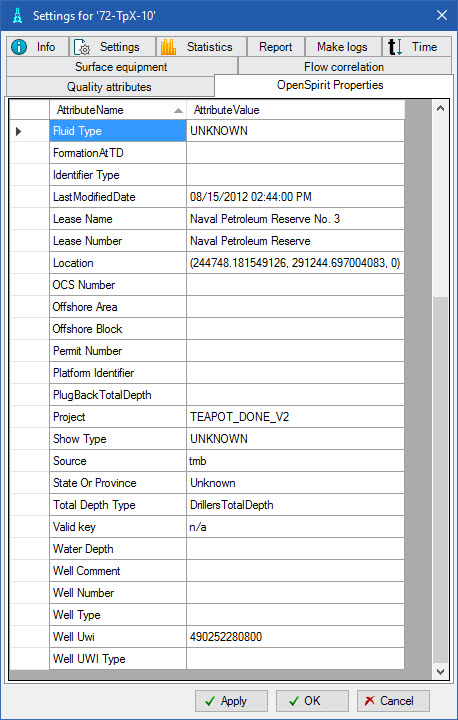

If data is imported via this mechanism the Petrel objects that are created are "tagged" with the OpenSpirit datakey and the last modified date from the source data store. This will allow synchronization with the external data source. In addition, based on settings in the configuration file, additional attributes, beyond what is mappable to the Petrel data model, will be added to the Petrel object. These extended attributes may be viewed in the Settings dialog of any imported object in the OpenSpirit Properties tab (as illustrated below).

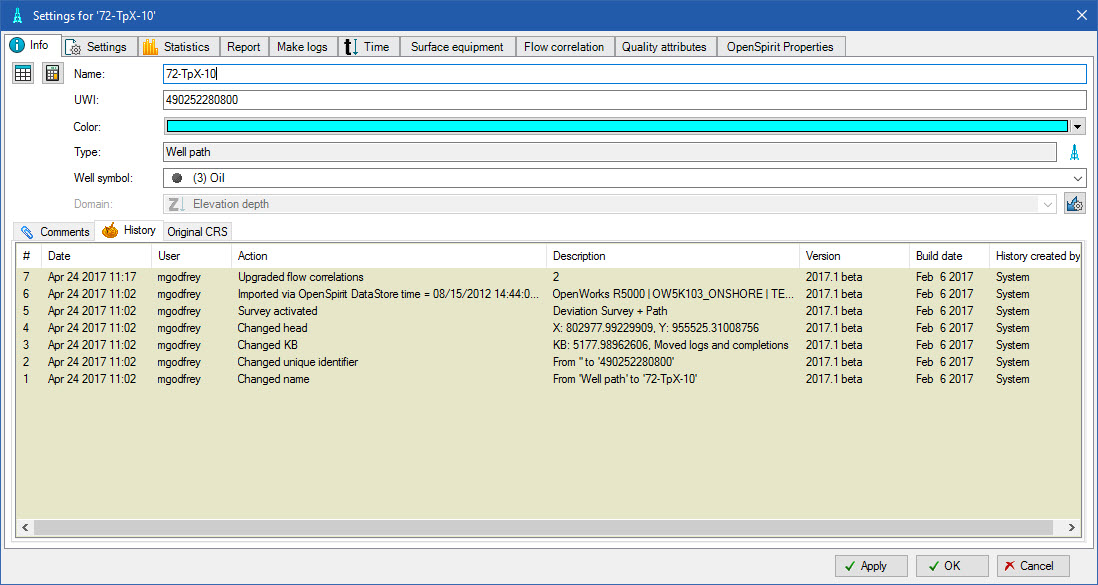

When data is imported entries are made in the Petrel object history to document from where the data was imported and what assumptions may have been made during import (see example below).
