Thomson Reuters Schema Designer View

Terminology

The following terms are used in this document and in the Thomson Reuters RFA/Java Configuration Wizard.

DACS

Data Access Control Systems.

FID

Field Identifier, a unique number that identifies a field within a record in a data feed.

RIC

Reuters Instrument Code, a ticker-like code used to uniquely identify financial instruments and indexes. RICs are used for looking up information on Reuters financial information networks.

RFA/Java

Reuters Foundation API for Java.

RTIC

Reuters TSA Information Cache, a Reuters data feed that combines features of the older TIBCO TIC and Reuters Triarch systems.

RMDS

Reuters Market Data System, the former name of the TREP-RT system.

TREP-RT

Thomson Reuters Enterprise Platform — Real Time.

Goal of the View

The goal of the Thomson Reuters Schema Designer view is to generate a StreamBase schema based on a selection of FIDs read directly from an TREP-RT data feed. The generated schema is saved as a named schema in the Definitions tab of a module or the Interface tab of a StreamBase interface.

The Schema Designer view supports RMDS 8+ infrastructures.

Opening the View

In the default installation, the Reuters Schema Designer view is open in the bottom center pane of the SB Authoring perspective. If you have closed the view, you can re-open it with Window>Show View>Reuters Schema Designer.

Schema Designer Fields

Use the fields of the Reuters Schema Designer from top to bottom as described in this section.

Note

Seek the assistance of your site's TREP-RT network administrator to determine the information you need to fill in the fields in this view.

Run RFA Configuration Wizard

The Run RFA Configuration Wizard link runs the Thomson Reuters RFA/Java Configuration Wizard, which configures and saves the global RFA/Java preference settings for this computer.

If your site has a policy that prevents changing the system's RFA/Java preference settings, then instead use File>New>RFA/Java Configuration File to generate an RFA/Java configuration file. When your configuration file is ready, re-run the Run RFA Configuration Wizard link, and select Configure from existing file on the wizard's second page.

RFA Session

From the RFA Session drop-down list, select the RFA session you want to connect to.

Studio reads the available RFA sessions from the TREP-RT infrastructure and populates this drop-down list automatically. If the RFA Session field is populated, it means the computer running Studio has already had its RFA/Java preferences configured at least once.

If the RFA Session drop-down list is empty, or if the entries it contains are obsolete or inappropriate, use the Run RFA Configuration Wizard link in the upper right corner of the view to configure this computer to access TREP-RT data. This will populate the RFA Session field.

Refresh Sessions

Click the Refresh Sessions link to pull an updated list of RFA sessions from your TREP-RT infrastructure.

Entitlements

If your site uses DACS Entitlements to authorize access to your TREP-RT infrastructure, you must specify your entitlements name and password before a connection can proceed.

Click the Set Lookup Entitlements button, and enter the requested information in the Entitlements Information dialog. If you are not sure what to enter, consult with the TREP-RT administrator for your site. When you click the Finish button in the dialog, the entitlement information you entered is summarized in the Entitlements section of the view.

Lookup Options

The information in these fields is required to use the Discover Services feature, because the RMDS configuration does not store this information.

Message Model

Select the RMDS message model from the drop-down list. The options are: Market Price, Market by Order, Market by Price, and Market Maker.

Dictionary

Use the Set Dictionary Options button to open the Set RMDS Data Dictionary Lookup Options dialog. The options are described in Data Dictionary Options.

Service

Type the name of the TREP-RT service you want to connect to. The name is case-sensitive and must be an exact match for an TREP-RT service on your network. Use the drop-down list to re-enter service names you have entered previously in this field.

Discover Services

Use the Discover Services link to identify TREP-RT service names on your site's TREP-RT infrastructure. The Service Discovery dialog attempts to discover services based on the current RFA Session setting. Select a service name from the Discovered Services list and click Use Selected Service.

Note

If your site uses DACS Entitlements, you must use the Set Lookup Entitlements button described above before using the Discover Services link.

RICs

Enter one or more RICs, separated by commas. For example, enter: GOOG.O,IBM.N,MSFT.ARC.

Load RICs from file

You can also populate this field from a text file containing a list of RICs, one RIC per line. Click the Load RICs from file link and navigate to the file system location of your RICs file.

Start FIDs Lookup button

When the fields above are filled in, click the Start FIDs Lookup button. Studio connects to your site's TREP-RT server and retrieves a list of all FIDs for the specified list of RICs.

If the Performing Reuters FIDs lookup dialog runs for a while with no advancement in the number of RICs found, click the Cancel button. For example, if the number below the progress bar stays at 8/10 or 2/3 without showing progress, then cancel the operation. In this case, the Results table is populated with the FIDs from the successfully found RICs. The status line above the Results table shows the number of RIC lookups that failed. Click this link, then click Details to see a list of the RICs that failed.

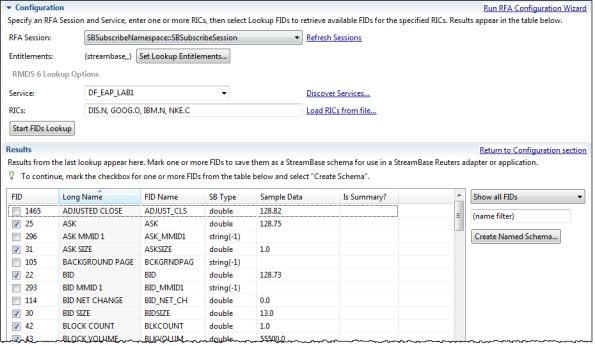

Results Grid

When the Start FIDs Lookup action succeeds, the results are shown in the Results grid.

If any field has a fractional price the system will automatically generate a double field and a string field for that FID. An example of this would be the BID field having a price of "34 2/32", in the result grid you will see two fields for FID 22. The first will have a FID Name of "BID" with a SB Type of double and Sample Data "34.0625". The second will have a FID Name of "BID_as_string" with a SB Type of string(-1) and Sample Data "34 2/32". The subscription adapter will automatically parse fields from the Reuters feed into fields with "_as_string" as the end of the name and a type of string.

By default, the grid shows all FIDs in all requested RICs. Use the upper drop-down list control on the right of the Results grid to specify Show FIDs present in all RICs. This option displays the intersection of FIDs from the specified list of RICs.

Select the check box for each FID you want to be in the generated StreamBase schema. To help you locate the FIDs of interest in a long Results table, use the following features:

  • Enter text in the search filter above the Create Schema button. (This field shows (name filter) by default.) This restricts the table to rows with matching text in the Long Name or FID Name columns. The search field is not case sensitive. To redisplay the entire Results table, click the Clear button on the field's right, or erase the text you entered.

  • The table is sorted by default by the Long Name column, in ascending alphabetical order. You can sort the table by any column by clicking a column header. Click again to sort in the reverse direction.

  • You can rearrange the column order. For example, click and hold the header of the FID Name column, and drag it horizontally to the left. Drop the column when it is over the Long Name column. This reorders the first three columns in the order: FID, FID Name, Long Name.

  • If you are generating a schema for summary fields only, click the In Summary column header to sort the list. This groups together all fields with summary=yes.

Create Named Schema button

When you have selected the FIDs of interest, click the Create Named Schema button. This opens the Edit Named Schema dialog, which prompts for a name for this schema. The default name FIDs is entered for you.

Select Existing and use the Browse button to select a module or interface file in the Studio workspace. This adds the new schema to the Definitions tab of the selected EventFlow module, or to the Interface tab of the selected StreamBase interface.

Select New to save the schema to a new interface or module file. Click the New button and select a project directory. The suggested file name SharedSchemas.sbint is entered for you. Click OK to create the new schema in an interface file with that name, or specify a different file name. If you change the file name's extension to .sbapp, Studio creates an EventFlow module instead of an interface file. If you specify any extension other than .sbint or .sbapp, Studio changes it to .sbint. If you specify the name of an existing file, Studio prompts for permission to overwrite and replace that file.

Wizard Helpers

To display a context-sensitive Help view that provides a brief description of the view and links to further information, click any control in of the wizard page and press F1 on Windows, or Ctrl+F1 on Linux.

Special Note for RTIC Servers

If your site uses a Reuters TSA Information Cache (RTIC) server, consider the following information before connecting to RTIC servers from StreamBase Studio.

A limitation in third-party communication libraries prevents StreamBase Studio from connecting to RTIC servers interactively from within Studio.

This limitation affects:

This limitation does not affect:

  • Using the file version of the RFA/Java Configuration Wizard (File>New>RFA/Java Configuration File) to generate a valid RFA/Java configuration file. That is, you can still create a valid configuration file for connecting to RTIC servers, which you can use with Thomson Reuters adapters.

Thus, you can still develop StreamBase modules that work in conjunction with StreamBase Reuters Adapters to process streams from an RTIC server. Only the interactive aspects of Studio are affected by this limitation.
