Creating Headings and Footings

There are several types of headings and footings:

• Report titles. These are titles you define that display in your browser's title bar when you run a report or graph in HTML or, as the worksheet tab name in an EXL2K report. For details see, Creating Headings and Footings.
• A report heading, which appears at the top of the first page of a report and a report footing, which appears on the last page of a report. For details on report headings and footings, see Creating Headings and Footings.
• A page heading, which appears at the top of every page of a report and a page footing, which appears at the bottom of every page of a report. For details on page headings and footings, see Creating Headings and Footings.
• A sort heading, which appears in the body of a report to identify the beginning of a group of related data. And a sort footing, which appears in the body to identify the end of a group of related data. For details on sort headings and footings, see Creating Headings and Footings.

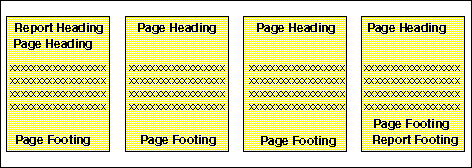

  The following sample report contains a report heading at the beginning of the report and a report footing at the end of the report. It also contains a page heading and page footing on every page of the report.



  The following sample report contains sort headings and sort footings, as well as, a page heading and page footing for reference.

  A sort heading looks like this:

  A sort footing looks like this:

Limits for Headings and Footings

The following limitations apply to report headings and footings, page headings and footings, and sort headings and footings:

• The space for headings, footings, subheadings, and subfootings is allocated dynamically. WebFOCUS imposes no limit on the amount of space used.
• The maximum number of sort headings plus sort footings in one request is 64.
• The maximum limit of nested headings is 64.
• If your code for a single heading or footing line is broken into multiple lines in the report request, you can indicate that they are all a single line of heading using the <0X spot marker. For more information, see Creating Headings and Footings.
• For PDF and Postscript reports, the heading or footing lines must fit within the maximum report width to be displayed properly. Also, in order for the report body to be displayed, the number of heading or footing lines must leave room on the page for at least one detail line (including column titles).

Extending Heading and Footing Code to Multiple Lines in a Report Request

A single line heading or footing code, between double quotation marks, can be a maximum of 32K characters. However, in some editors the maximum length of a line of code in a procedure is 80 characters. In cases like this, you can use the <0X spot marker to continue your heading onto the next line. The heading or footing content and spacing appears exactly as it would if typed on a single line.

Even if you do not need to extend your code beyond the 80-character line limit, this technique offers convenience, since shorter lines may be easier to read on screen and to print on printers.

Extend Heading or Footing Code to Multiple Lines in a Report Request

Procedure
1. Begin the heading or footing with double quotation marks (").
2. Split the heading or footing content into multiple lines of up to 76 characters each, using the <0X spot marker at any point up to the 76th character to continue your heading onto the next line. (The four remaining spaces are required for the spot marker itself, and a blank space preceding it.)
3. The heading or footing line can contain a maximum of 410 characters, with each line ending in an <0X spot marker.
4. Place the closing double quotation marks at the end of the final line of heading or footing code.

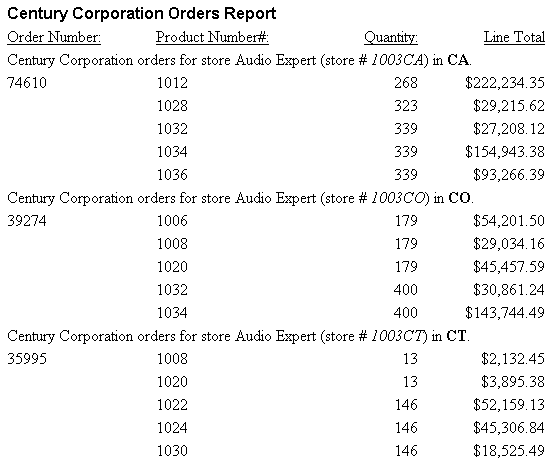

SET ONLINE-FMT = HTML
SET PAGE-NUM = OFF
JOIN STORE_CODE IN CENTCOMP TO STORE_CODE IN CENTORD

TABLE FILE CENTCOMP
HEADING
"Century Corporation Orders Report"
PRINT PROD_NUM QUANTITY LINEPRICE
BY STORE_CODE NOPRINT
BY ORDER_NUM
ON STORE_CODE SUBHEAD
"Century Corporation orders for store <STORENAME <0X
    (store # <STORE_CODE|) in <STATE|."
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
TYPE=HEADING, FONT='ARIAL', STYLE=BOLD, $
TYPE=SUBHEAD, OBJECT=FIELD, ITEM=2, STYLE=ITALIC, $
TYPE=SUBHEAD, OBJECT=FIELD, ITEM=3, STYLE=BOLD, $
ENDSTYLE
END

Creating a Custom Report or Worksheet Title

You can create a report title that:

• Overrides the default report title (FOCUS Report) that appears in the title bar of your browser in an HTML report or graph.
• Replaces the default worksheet tab name with the name you specify in an EXL2K report.

The worksheet tab names for an Excel Table of Contents report are the BY field values that correspond to the data on the current worksheet. If the user specifies the TITLETEXT keyword in the stylesheet, it will be ignored.

• Excel limits the length of worksheet titles to 31 characters. The following special characters cannot be used: ':', '?', '*', and '/'.
• If you want to use date fields as the bursting BY field, you can include the - character instead of the / character. The - character is valid in an Excel tab title. However, if you do use the / character, WebFOCUS will substitute it with the - character.

Create a Custom Report Title

TYPE=REPORT, TITLETEXT='title', $

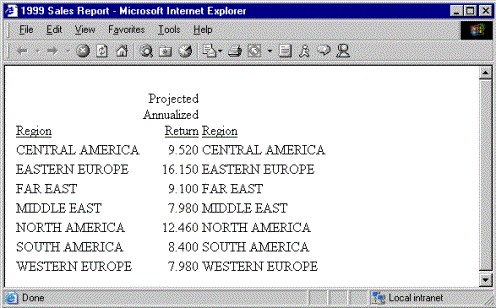

TABLE FILE SHORT
SUM PROJECTED REGION
BY REGION
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, TITLETEXT='1999 Sales Report', $
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

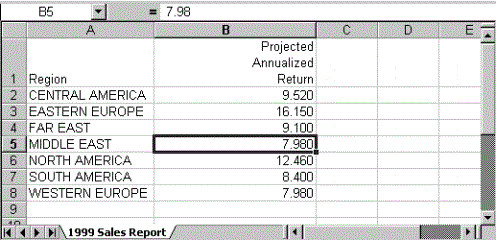

TABLE FILE SHORT
SUM PROJECTED_RETURN
BY REGION
ON TABLE PCHOLD FORMAT EXL2K
ON TABLE SET STYLE *
TYPE=REPORT, TITLETEXT='1999 Sales Report', $
ENDSTYLE
END

Creating a Report Heading or Footing

A report heading appears before the first page and is one of the most important components of a report. It provides a unique name to a report and identifies its purpose or content. A short, single-line report heading may meet the needs of your user, or you may include multiple lines of appropriate information.

A report footing appears after the last page of a report. You might add a report footing to signal the end of data so the user knows that the report is complete. A report footing can also provide other information, such as the author of the report.

A report heading or footing can include text, fields, Dialogue Manager variables, images, and spot markers.

Create a Report Heading

ON TABLE [PAGE-BREAK AND] SUBHEAD
 "content ... "
["content ... "]
.
.
.
["content ... "]

Dialogue Manager variables.

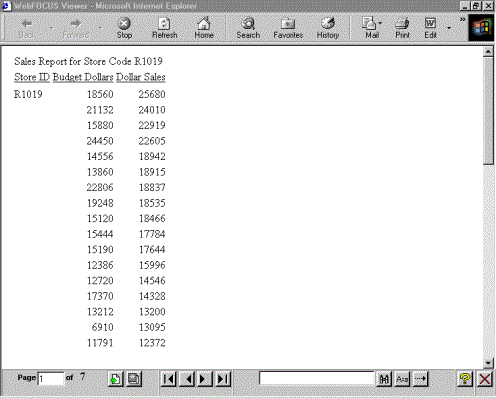

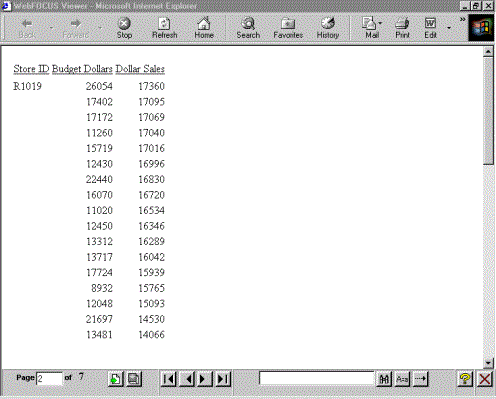

TABLE FILE GGSALES
PRINT BUDDOLLARS DOLLARS
BY STCD
WHERE STCD EQ 'R1019'
ON TABLE SUBHEAD
"Sales Report for Store Code R1019"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET WEBVIEWER ON
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF,$
ENDSTYLE
END

Create a Report Footing

ON TABLE [PAGE-BREAK AND] SUBFOOT
 "content ... "
["content ... "]
.
.
.
["content ... "]

Dialogue Manager variables.

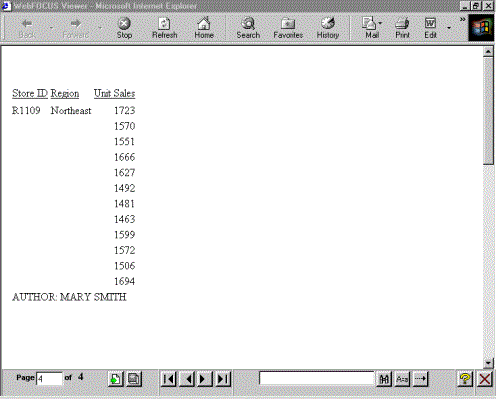

TABLE FILE GGSALES
PRINT UNITS
WHERE UNITS GE 1400
BY STCD BY REGION
WHERE REGION EQ 'Northeast'
ON TABLE SUBFOOT
"AUTHOR: MARY SMITH"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET WEBVIEWER ON
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF,$
ENDSTYLE
END

Creating a Page Heading or Footing

A page heading appears at the top of every page of a report, and a page footing appears at the bottom of every page.

Add a page heading to identify and reinforce the report content and purpose from page to page, or include a variable that customizes the heading on each page. For example, consider a report with employee bank account information, arranged by department. Information for each department appears on a separate page. The page heading for this report identifies the department addressed on each page (for example, ACCOUNT REPORT FOR PRODUCTION DEPARTMENT).

Add a page footing to supply information that warrants repetition on each page, such as the date of the report, or a reminder that it is confidential. You can also use a page footing to supply descriptive information about a report, such as PRELIMINARY or DRAFT COPY.

A page heading or footing can include text, fields, Dialogue Manager variables, images, and spot markers.

In addition, you can use page heading and footing syntax to create a free-form (non-tabular) report, in which you position data on a page using a layout of your own design. See Creating a Free-Form Report for details.

A TABLE request can have more than one page heading or footing. For each heading or footing, a WHEN clause against the data being retrieved can determine whether the heading or footing displays on the report output.

In a heading, the data for the WHEN clause and data field values displayed in the heading are based on the first line on the page. In a footing, the data for the WHEN clause and the data field values displayed in the footing are based on the last line on the page.

The CONDITION StyleSheet attribute enables you to identify a specific WHEN clause so that you can style each heading or footing separately. For information, see Identifying a Heading, Footing, Title, or FML Free Text.

Create a Page Heading

[HEADING [CENTER]]
 "content ... "
["content ... "]
.
.
.
["content ... "]

Dialogue Manager variables.

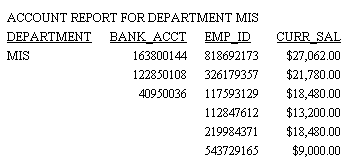

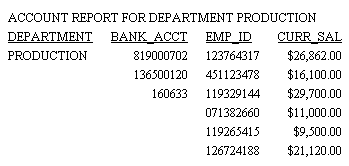

TABLE FILE EMPLOYEE
"ACCOUNT REPORT FOR DEPARTMENT <DEPARTMENT"
PRINT CURR_SAL BY DEPARTMENT BY HIGHEST BANK_ACCT
BY EMP_ID
ON DEPARTMENT PAGE-BREAK
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF,$
ENDSTYLE
END

Create a Page Footing

FOOTING [CENTER] [BOTTOM]
  "content ... "
["content ... "]
.
.
.
["content ... "]

Dialogue Manager variables.

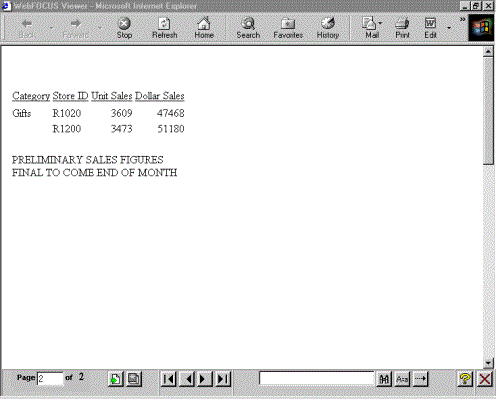

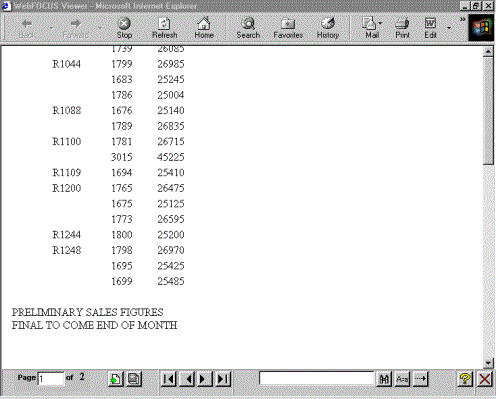

TABLE FILE GGSALES
PRINT UNITS DOLLARS
BY CATEGORY BY STCD
WHERE TOTAL DOLLARS GE 25000
FOOTING
"PRELIMINARY SALES FIGURES"
"FINAL TO COME END OF MONTH"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET WEBVIEWER ON
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF,$
ENDSTYLE
END

Specify a Heading or Footing With a WHEN Clause

{HEADING [CENTER]|FOOTING}
"text_and_data1"
   .
   .
   .
"text_and_datan"
WHEN expression

Usage Notes for Multiple Headings

Freezing HTML and AHTML Headings, Footings, and Column Titles

You may want to scroll the data in a report while freezing headings, column titles, and footings in order to see the context of the report output while scrolling.

Using StyleSheet attributes, you can set aside a scrollable area for HTML and AHTML report output.

The HTML HFREEZE reporting feature is supported with the browser versions listed in Web Browser Support for WebFOCUS. The HFREEZE feature is listed in the 8.1 Browser Support Matrix in the HTML Reporting Features section JavaScript components row.

Usage Notes for HTMLARCHIVE With HFREEZE

SET HTMLEMBEDIMG=ON
SET HTMLARCHIVE=ON

SET BASEURL=http://{hostname:portnumber}

Create a Scrollable Area in an HTML Report

TYPE=REPORT,HFREEZE={OFF|ON|TOP|BOTTOM},[SCROLLHEIGHT={AUTO|nn[.n]}], $

Create a Scrollable Area in an AHTML Report

TYPE=REPORT,HFREEZE={OFF|ON}, $

HFREEZE With Blank Column Titles

Usage Notes for Freezing Areas of HTML Report Output

Usage Notes for Freezing Areas of AHTML Report Output

Creating a Sort Heading or Footing

A sort heading is text that precedes a change in a sort field value, identifying the beginning of a group of related data. A sort footing is text that follows a change in a sort field value, identifying the end of a group of related data.

A sort heading or footing, which appears in the body of a report, helps you identify different areas of detail in a report. Sort headings or footings can include text, fields, Dialogue Manager variables, images, and spot markers.

By including a WHEN phrase in a request, you can generate a message, implemented as a sort heading or footing, for data that meets the criterion you define. For details on conditional formatting, see Controlling Report Formatting.

If you are using a RECAP command to create subtotal values in a calculation, you can replace the default RECAP label with a more meaningful sort footing by following the RECAP command for a field with a SUBFOOT command for that field. For details about the RECAP command, see Including Totals and Subtotals.

If one or more data fields are embedded in the sort footing, you can omit a display command from the report request since, by default, data fields in headings and footings are summed. If, however, a request does contain an explicit SUM command and a display field is also specified in the sort footing, the field in the sort footing is summed. You can omit the display command from other types of headings and footings as well. Note that the data for headings is taken from the first sort group and the data for footings is taken from the last sort group. For related information, see Creating Headings and Footings.

By default, WebFOCUS generates a blank line before a subheading or subfooting. You can eliminate these automatic blank lines by issuing the SET DROPBLNKLINE=ON command.

Alignment of Subheadings and Subfootings

Create a Sort Heading

BY fieldname SUBHEAD [NEWPAGE]
 "content ... "
["content ... "]
.
.
.
["content ... "]
[WHEN expression;]
BY fieldname
ON fieldname SUBHEAD [NEWPAGE]
 "content ... "
["content ... "]
.
.
.
["content ... "]
[WHEN expression;]

BY fieldname
ON fieldname SUBHEAD [NEWPAGE]
 "content ... "
["content ... "]
.
.
.
["content ... "]
[WHEN expression;]

Dialogue Manager variables.

TABLE FILE GGPRODS
PRINT PACKAGE_TYPE AND UNIT_PRICE
WHERE UNIT_PRICE GT 50
BY PRODUCT_DESCRIPTION NOPRINT BY PRODUCT_ID
ON PRODUCT_DESCRIPTION SUBHEAD
"Summary for <PRODUCT_DESCRIPTION"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

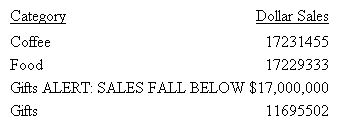

TABLE FILE GGSALES
SUM DOLLARS
BY CATEGORY SUBHEAD
"<CATEGORY ALERT: SALES FALL BELOW $17,000,000"
WHEN DOLLARS LT 17000000;
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

Create a Sort Footing

BY fieldname SUBFOOT [WITHIN] [MULTILINES] [NEWPAGE]
 "content ... "
["content ... "]
.
.
.
["content ... "]
[WHEN expression;]
BY fieldname
ON fieldname SUBFOOT [WITHIN] [MULTILINES] [NEWPAGE]
 "content ... "
["content ... "]
.
.
.
["content ... "]
[WHEN expression;]

BY fieldname
ON fieldname SUBFOOT [MULTILINES] [NEWPAGE]
 "content ... "
["content ... "]
.
.
.
["content ... "]
[WHEN expression;]

Dialogue Manager variables.

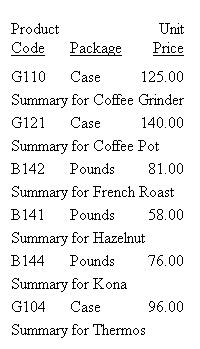

TABLE FILE GGPRODS
PRINT PACKAGE_TYPE AND UNIT_PRICE
WHERE UNIT_PRICE GT 50
BY PRODUCT_DESCRIPTION NOPRINT BY PRODUCT_ID
ON PRODUCT_DESCRIPTION SUBFOOT
"Summary for <PRODUCT_DESCRIPTION"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

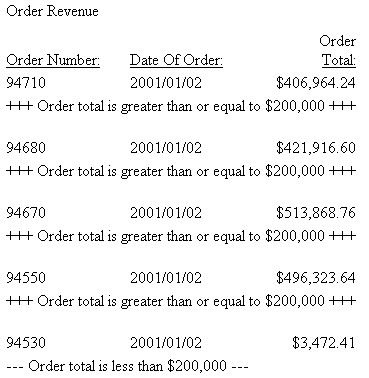

TABLE FILE CENTORD
HEADING
"Order Revenue"
" "
SUM ORDER_DATE LINEPRICE AS 'Order,Total:'
BY HIGHEST 5 ORDER_NUM
ON ORDER_NUM
   SUBFOOT
      "--- Order total is less than $200,000 ---"
      " "
      WHEN LINEPRICE LT 200000;
   SUBFOOT
      "+++ Order total is greater than or equal to $200,000 +++"
      " "
      WHEN LINEPRICE GE 200000;
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

TABLE FILE GGORDER
PRINT QUANTITY
BY PRODUCT_CODE NOPRINT BY PRODUCT_DESCRIPTION
WHERE ORDER_DATE EQ '01/01/96'
WHERE STORE_CODE EQ 'R1019'
WHERE PRODUCT_DESCRIPTION EQ 'Hazelnut' OR 'Biscotti' OR 'Croissant'
ON PRODUCT_CODE SUBFOOT MULTILINES
"<PRODUCT_DESCRIPTION has multiple orders."
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

TABLE FILE SHORT
SUM BALANCE AS 'Dollars' ENGLAND_POUND AS 'Sterling'
BY REGION
WHERE REGION EQ 'FAR EAST' OR 'CENTRAL AMERICA' OR 'WESTERN EUROPE';
BY COUNTRY NOPRINT
RECAP EURO/D16=BALANCE * 1.03;
SUBFOOT
" "
"Balance of investments for <COUNTRY> in Euros is <EURO>."
" "
END

TABLE FILE EMPLOYEE
BY DEPARTMENT NOPRINT SUBFOOT
"<DEPARTMENT DEPARTMENT TOTAL SALARY IS <SALARY"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

Usage Notes for Subfoots
