complexType XmlCalendarResponse

diagram
namespace	http://workcal.api.dac.n2.tibco.com
children	base-calendar overlay-calendar
used by	elements  getCalendarResponse saveCalendar saveCalendarResponse
annotation	documentation A generic request/response type used to pass details of one of the possible Calendar types.
source	<xs:complexType name="XmlCalendarResponse">   <xs:annotation>     <xs:documentation>A generic request/response type used to pass details of one of the possible Calendar types.</xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="base-calendar" type="dac:XmlBaseCalendar" minOccurs="0" maxOccurs="1"/>     <xs:element name="overlay-calendar" type="dac:XmlOverlayCalendar" minOccurs="0" maxOccurs="1"/>   </xs:choice> </xs:complexType>

element XmlCalendarResponse/base-calendar

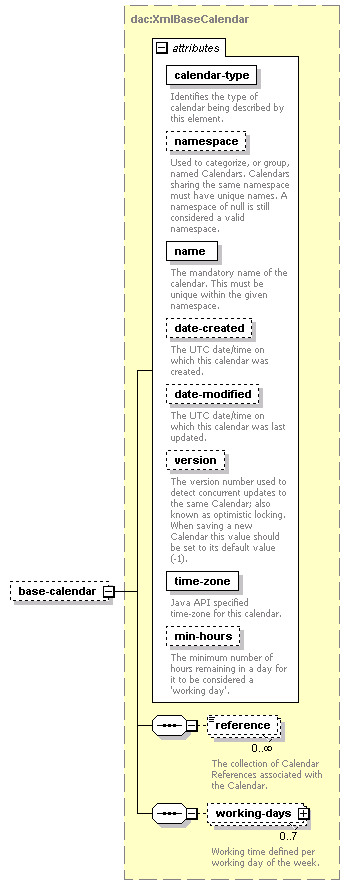

diagram
type	XmlBaseCalendar
properties	minOcc  0 maxOcc  1 content  complex
children	reference working-days
attributes	Name   Type   Use   Default   Fixed   Annotation calendar-type   XmlCalendarType   required         documentation Identifies the type of calendar being described by this element. namespace   xs:string   optional         documentation Used to categorize, or group, named Calendars. Calendars sharing the same namespace must have unique names. A namespace of null is still considered a valid namespace. name   xs:string   required         documentation The mandatory name of the calendar. This must be unique within the given namespace. date-created   xs:dateTime   optional         documentation The UTC date/time on which this calendar was created. date-modified   xs:dateTime   optional         documentation The UTC date/time on which this calendar was last updated. version   XmlLockVersion      -1      documentation The version number used to detect concurrent updates to the same Calendar; also known as optimistic locking. When saving a new Calendar this value should be set to its default value (-1). time-zone   XmlTimeZoneId   required         documentation Java API specified time-zone for this calendar. min-hours   Hours      0      documentation The minimum number of hours remaining in a day for it to be considered a 'working day'.
source	<xs:element name="base-calendar" type="dac:XmlBaseCalendar" minOccurs="0" maxOccurs="1"/>

element XmlCalendarResponse/overlay-calendar

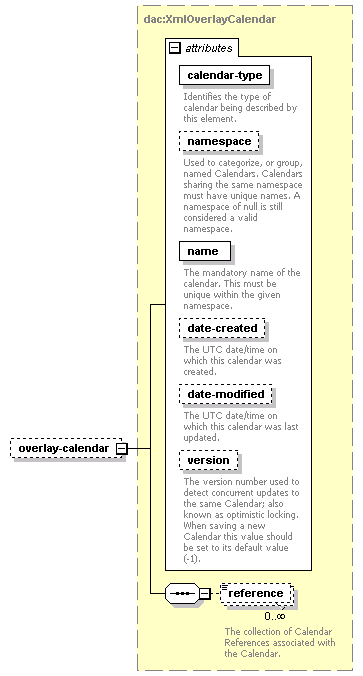

diagram
type	XmlOverlayCalendar
properties	minOcc  0 maxOcc  1 content  complex
children	reference
attributes	Name   Type   Use   Default   Fixed   Annotation calendar-type   XmlCalendarType   required         documentation Identifies the type of calendar being described by this element. namespace   xs:string   optional         documentation Used to categorize, or group, named Calendars. Calendars sharing the same namespace must have unique names. A namespace of null is still considered a valid namespace. name   xs:string   required         documentation The mandatory name of the calendar. This must be unique within the given namespace. date-created   xs:dateTime   optional         documentation The UTC date/time on which this calendar was created. date-modified   xs:dateTime   optional         documentation The UTC date/time on which this calendar was last updated. version   XmlLockVersion      -1      documentation The version number used to detect concurrent updates to the same Calendar; also known as optimistic locking. When saving a new Calendar this value should be set to its default value (-1).
source	<xs:element name="overlay-calendar" type="dac:XmlOverlayCalendar" minOccurs="0" maxOccurs="1"/>
