OpenSpirit Data Manager Overview

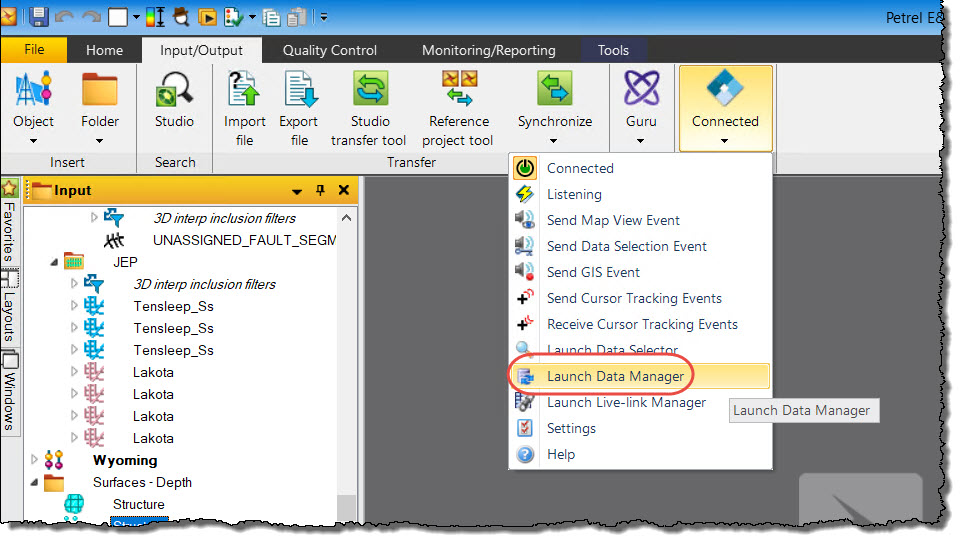

This dialog allows a user to see a summary of all the Petrel objects that may be imported or exported via the OpenSpirit Adapter. It is displayed by selecting the OpenSpirit data manager option from the OpenSpirit ribbon tool:

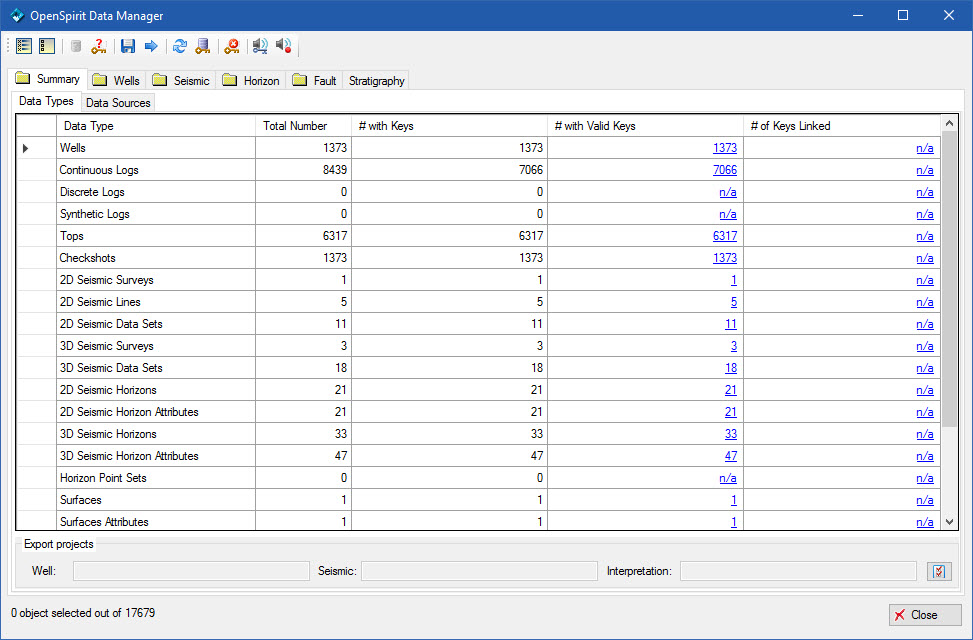

The OpenSpirit data manager looks like this:

This manager allows a user to:

• See a count of all the Petrel objects, by type, that may be imported or exported via OpenSpirit (and see which have OpenSpirit datakeys)
• Check the current accessibility of the data sources of the Petrel objects that were imported via OpenSpirit
• Check which datakeys are still valid
• Save Petrel objects, or a selected subset,  to source project(s)
• Export all objects, or a selected subset, to a chosen external project
• "Refresh" objects with valid datakeys (from the linked external project) for all objects or a selected subset
• Link Petrel objects to an external project (based on matching selected attributes)
• Clear invalid datakeys
• Send data selection event to OpenSpirit
• Send GIS feature/grid event to OpenSpirit

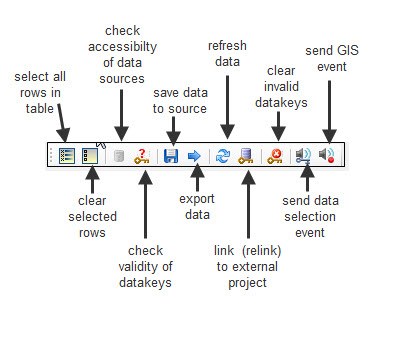

This functionality is accessed via the tool bar shown below and described in detail in the following linked sections.

(Click on tool bar button. or description below or above, to see more details)
