Engine Persistence mode FTGroup

The database is not needed when the Engine Persistence mode is FTGroup.

  • If you select EMS as the group provider technology then the EMS as the Group Provider Configuration page is displayed.
EMS as the Group Provider Configuration

  1. If you select the EMS Server Source as Specified from the drop-down, then you need to specify the EMS Server URL , EMS User Name, EMS Password.

  2. If you select the Configure EMS SSL check box, then you upload EMS SSL KeyStore or Entrust Store encodings, EMS SSL The set of Trusted Certificates, and provide values for EMS SSL connection trust password, Do not verify Host Name, Do not verify Host .

    TIBCO ActiveMatrix BusinessWorks Certificates

    TIBCO EMS Certificates

  • If you select FTL as the group provider technology for the engine, then the FTL as the Group Provider Configuration page is displayed.

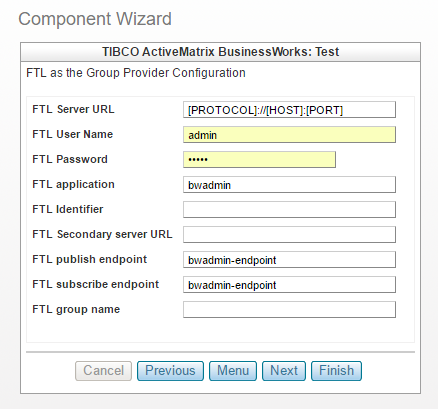

FTL as the Group Provider Configuration

Procedure

  1. Specify details such as FTL Server URL, FTL User Name, FTL Password, and so on to use the new FTL server.
  2. Click Next.
