Data Flow of Monitoring Data and Log Messages

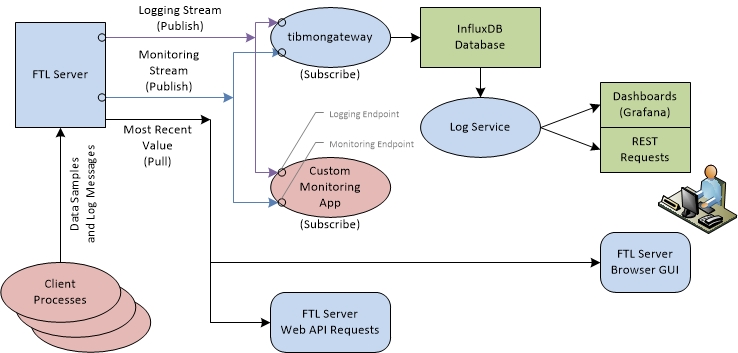

The following diagram illustrates the flow of FTL monitoring data and log messages.

Explanation of the Diagram

  • All data begins in clients. The TIBCO FTL client library monitors the metrics relevant to each client. It forwards monitoring data, log messages, and advisory messages to the TIBCO FTL server.
  • When the FTL server receives monitoring data from any of its clients, the FTL server immediately publishes that data on the monitoring stream.

    When the FTL server receives log messages or advisory messages from any of its clients, the FTL server immediately publishes those messages on the logging stream.

    Any FTL application can subscribe to the built-in monitoring endpoint to receive the monitoring stream, or the built-in logging endpoint to receive the logging stream.

  • You can develop custom monitoring applications that subscribe to these streams and use their data.
  • TIBCO FTL software includes an executable service application, tibmongateway. It subscribes to both the monitoring stream and the logging stream, and stores their data in an InfluxDB database.

    InfluxDB is an open-source database. You can access the data directly from InfluxDB, or using other tools that manipulate and display the data, for example, Grafana.

  • The FTL server retains only the most recent value of each metric from each client, and the most recent log from each client.

    These values are available from the FTL server through its web API and browser GUI.

Key to Shape and Colors in the Diagram

Ellipse
FTL client process
Rectangle
Other executable program process
Small Circle (inside another shape)
Monitoring endpoint
Rounded Rectangle
API, GUI, or HTTP request
Blue
Component of TIBCO FTL software
Red
Your FTL applications
Green
Third-party tool

Changes in Functionality

Note: Starting in Release 5.4, the monitoring gateway inserts monitoring data and log messages into an InfluxDB database. In Releases 5.1 through 5.3, an adapter application injected monitoring data into Prometheus. Release 6.0 no longer supports Prometheus.
